Removal of dash gauges - 68 442?
#1
Removal of dash gauges - 68 442?
I am an Olds "newbie" with a recently purchased '68 442 convertible with A/C.
1) What is the proper method to remove the dash gauges, e.g. do they have to come from underneath or from the back? If underneath, I will need to remove the A/C ductwork......correct?
2) My clock on the tach works beautifully, but the **** to adjust the time must have the gears stripped, so I will have to remove. Any advice on who can repair?
3) Any corect parts number listings/source for replacing the dash bulbs with LED's?
Or...............Correct part number(s) for standard dash bulbs?
Thanks,
Jim
1) What is the proper method to remove the dash gauges, e.g. do they have to come from underneath or from the back? If underneath, I will need to remove the A/C ductwork......correct?
2) My clock on the tach works beautifully, but the **** to adjust the time must have the gears stripped, so I will have to remove. Any advice on who can repair?
3) Any corect parts number listings/source for replacing the dash bulbs with LED's?
Or...............Correct part number(s) for standard dash bulbs?
Thanks,
Jim
#2
The gauge pods come out the front. But first you have to go in the back and remove the two retaining bolts on each one. I believe it takes a 1/4 wrench and if you had extra joints in your arm that would really be helpful
There have been a few threads on this topic, try doing a search and see what you come up with. If you strike out I have photos of the backside of the dash showing the fasteners that need to be removed. John
There have been a few threads on this topic, try doing a search and see what you come up with. If you strike out I have photos of the backside of the dash showing the fasteners that need to be removed. John
#3
Thank you, John.
Will I also need to remove the AC ductwork under the dash? As you can see, I have not yet tried to crawl underneath there to scope out the situation.
I hope to have some time to try this over the holidays.
Jim
Will I also need to remove the AC ductwork under the dash? As you can see, I have not yet tried to crawl underneath there to scope out the situation.
I hope to have some time to try this over the holidays.
Jim
#4
Jim, I don't think you'll have to do anything with the ductwork. Here's some pictures, let me know if you have any questions about them. Also note the ground strap running between the pods, be sure and keep track of that for reinstallation. John
#6
Thank you, once again.
John...The pictures are extremely helpful, and I really appreciate your taking the time to post them. It appears the 1/4 inch bolts holding the gauges will need to be completely removed to pull the gauge faces out the front (I am also assuming the dash pad will NOT need to be removed?)?
This really helps.
I also appreciate the advice on being gentle with fragile connectors. I usually learn these things, after I have broken a part that is extremely difficult to repair or find.
Happy holidays to all!
Jim
John...The pictures are extremely helpful, and I really appreciate your taking the time to post them. It appears the 1/4 inch bolts holding the gauges will need to be completely removed to pull the gauge faces out the front (I am also assuming the dash pad will NOT need to be removed?)?
This really helps.
I also appreciate the advice on being gentle with fragile connectors. I usually learn these things, after I have broken a part that is extremely difficult to repair or find.
Happy holidays to all!
Jim
#7

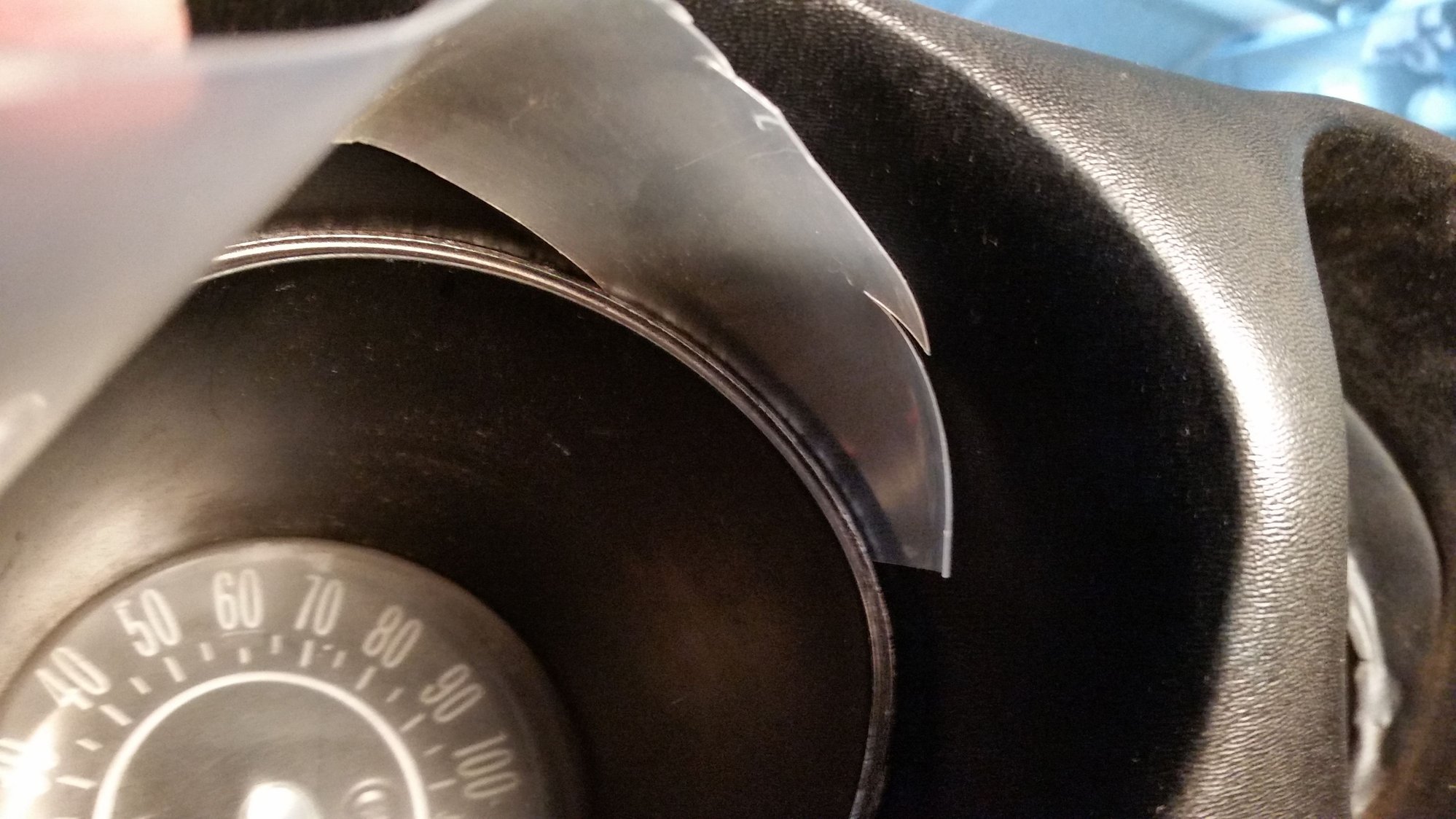

Jim, yes the little bolts need to be completely removed. The pad is left on and you can gently wiggle/work the pod out through the front. I had one dash where the vinyl covering the pad had a flap come loose, so I had to work the pod around to not snag this flap. But with a little patience it's not too bad of a project. Certainly the worst is standing on your head reaching up under the dash to reach the little bolts!
And as Yellowstatue said be very careful with the pins on the back!
John
And as Yellowstatue said be very careful with the pins on the back!
John
#8
Just remove
Jim, yes the little bolts need to be completely removed. The pad is left on and you can gently wiggle/work the pod out through the front. I had one dash where the vinyl covering the pad had a flap come loose, so I had to work the pod around to not snag this flap. But with a little patience it's not too bad of a project. Certainly the worst is standing on your head reaching up under the dash to reach the little bolts!
And as Yellowstatue said be very careful with the pins on the back!
John
And as Yellowstatue said be very careful with the pins on the back!
John
Honestly just remove the seat and lie down and do it.. much easier
#9
Even though this thread is over 10 years old, the question still pops up now and then.
If the car has bucket seats, without a doubt remove the drivers seat. If the car has a bench seat, I’d still strongly consider removing it. I’m 6’ 1”, and “dangerously underweight” crawling under the dash isn’t nearly as easy as it was when I was 20! Lay down a heavy blanket, the studs for the seat will shred your back if you don’t! A 1/4 inch wrench, sockets, swivel sockets, and assorted extensions make it easier. Don’t forget the small jumper wire for the grounds, if you forget to reinstall it your fuel gauge won’t work. Work slowly and carefully, once your as comfortable under the dash as you can be it’s not a bad job.
If the car has bucket seats, without a doubt remove the drivers seat. If the car has a bench seat, I’d still strongly consider removing it. I’m 6’ 1”, and “dangerously underweight” crawling under the dash isn’t nearly as easy as it was when I was 20! Lay down a heavy blanket, the studs for the seat will shred your back if you don’t! A 1/4 inch wrench, sockets, swivel sockets, and assorted extensions make it easier. Don’t forget the small jumper wire for the grounds, if you forget to reinstall it your fuel gauge won’t work. Work slowly and carefully, once your as comfortable under the dash as you can be it’s not a bad job.
Last edited by matt69olds; March 29th, 2020 at 07:35 AM.
#10
And I would suggest skipping the LED bulbs. They can’t be dimmed with the headlight dimmer ****, they won’t provide enough current to power up the field winding of the alternator, just more of a hassle than they are worth. The dash backlighting use 194 bulbs, the warning lamps are 168 bulbs.
#11
And...in getting back to the basics, there's simply not a whole lot of room under there in trying to remove those hex screws with the dash in place. With A/C, you have to remove at least the bottom portion of the A/C vents to have any degree of room to get at those hex nuts.
Randy C.
Randy C.
#12
... The pad is left on and you can gently wiggle/work the pod out through the front. I had one dash where the vinyl covering the pad had a flap come loose, so I had to work the pod around to not snag this flap. But with a little patience it's not too bad of a project. ...John
#13
Having done that with my car. Some things you might want to do, when you remove the Duct work be careful that square fabric hose is delicate and Nobody makes it. The next thing is see if your Orthopedic surgeon can install another joint in your arm. Then make sure the Wife and Kids are not home or put a piece of Duct tape across your mouth, because you will be doing a lot of cussing and swearing. Either that or find some small skinny Mechanic to do it for you. Just saying
#14
Does anyone have pictures of the actual bolts to take off the instrument panel off?
Even though this thread is over 10 years old, the question still pops up now and then.
If the car has bucket seats, without a doubt remove the drivers seat. If the car has a bench seat, I’d still strongly consider removing it. I’m 6’ 1”, and “dangerously underweight” crawling under the dash isn’t nearly as easy as it was when I was 20! Lay down a heavy blanket, the studs for the seat will shred your back if you don’t! A 1/4 inch wrench, sockets, swivel sockets, and assorted extensions make it easier. Don’t forget the small jumper wire for the grounds, if you forget to reinstall it your fuel gauge won’t work. Work slowly and carefully, once your as comfortable under the dash as you can be it’s not a bad job.
If the car has bucket seats, without a doubt remove the drivers seat. If the car has a bench seat, I’d still strongly consider removing it. I’m 6’ 1”, and “dangerously underweight” crawling under the dash isn’t nearly as easy as it was when I was 20! Lay down a heavy blanket, the studs for the seat will shred your back if you don’t! A 1/4 inch wrench, sockets, swivel sockets, and assorted extensions make it easier. Don’t forget the small jumper wire for the grounds, if you forget to reinstall it your fuel gauge won’t work. Work slowly and carefully, once your as comfortable under the dash as you can be it’s not a bad job.
#15
What year/model of car do you have? If its a 1968 or 69 Cutlass the instruments are in three different pods rather than one large panel. The pictures on this older thread do show where the fasteners are on each pod. John
