BIG spark after alternator install

Thread Tools

Search this Thread

Old July 15th, 2023, 11:19 AM
  #41
Registered User
Thread Starter

mrtoronadoman's Avatar

Join Date: Jun 2023
Posts: 31
Originally Posted by Vintage Chief
Regarding your charge light. You indicated you measured 12.48V battery voltage - that's good & w/in specs for a healthy battery. Determine the health of your current alternator before upgrading (if that's what you want to do).

(1) Car off - measure battery voltage as you normally would. What is battery voltage - should still approximate ~12.48V.
(2) Car on/running (turn off all accessories) - no lights, no A/C, no heater, no radio, etc. - measure battery voltage. What is battery voltage - should approximate >13.9V, nominally ~14.3V. If you're above 13.9V & below 14.9V the alternator is working as designed for a standard equipped vehicle. The ALT/GEN (charge light) sensor switch may be bad rather than the alternator. No sense spending the $$ on a working alternator unless you plan for an extra workload.

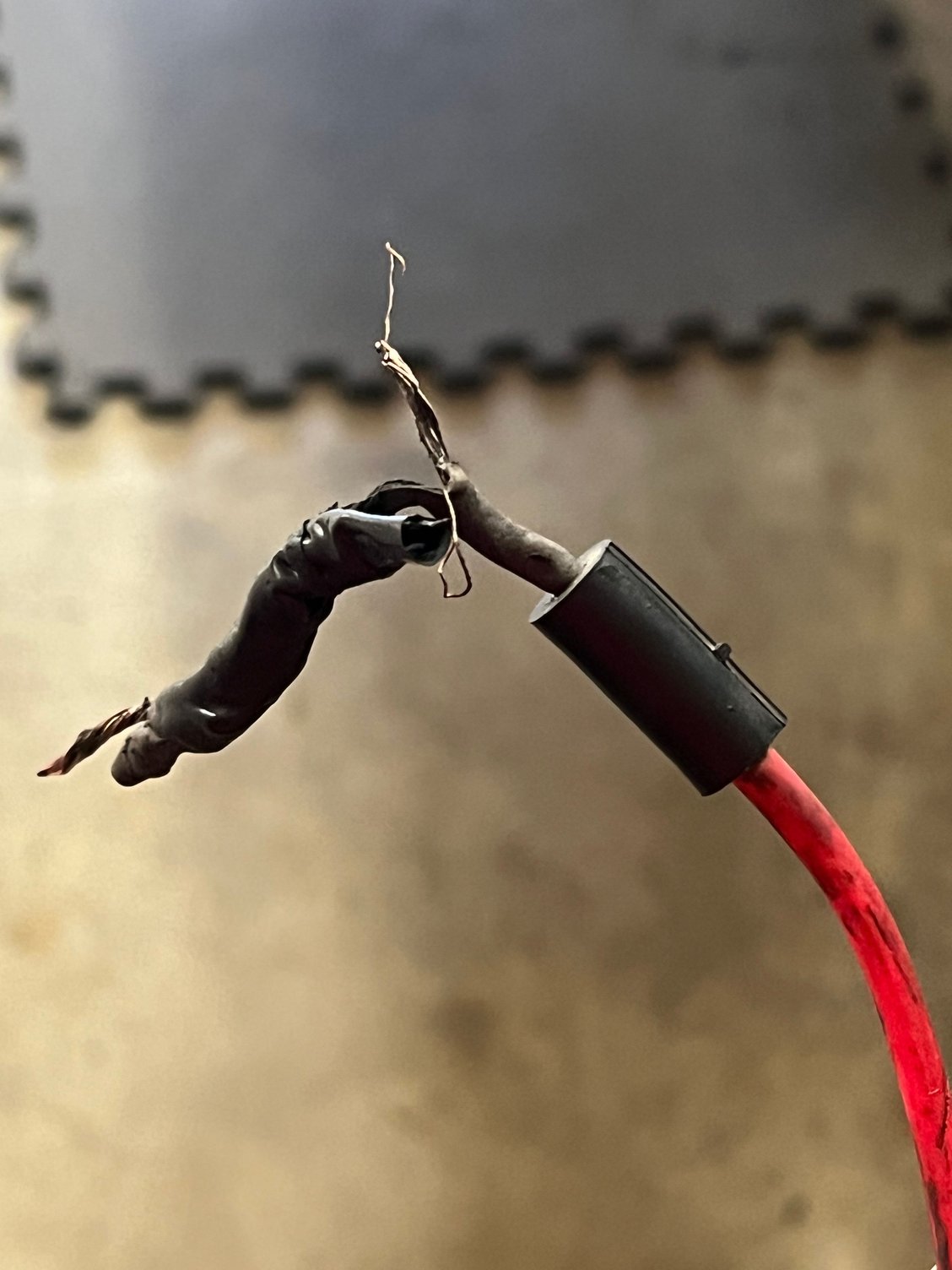

well, here’s the cable running from positive battery post to the alt. That explains a lot.

mrtoronadoman is offline
Old July 15th, 2023, 11:46 AM
  #42
Running On Empty

Vintage Chief's Avatar

Join Date: Jul 2018
Location: Earth
Posts: 18,235
Toasty
Vintage Chief is online now
Old July 15th, 2023, 12:05 PM
  #43
Registered User

Dynoking's Avatar

Join Date: Jul 2019
Posts: 285
Can anyone explain the function and location of the “ALT/GEN (charge light) sensor switch”?
Dynoking is offline
Old July 15th, 2023, 12:36 PM
  #44
Registered User

Sugar Bear's Avatar

Join Date: Aug 2011
Posts: 3,053
I believe the burned section is a fusible link, a wire intentionally placed and designed to melt and interrupt the circuit to protect the rest of the wiring and the entire car from igniting. Replace it with the proper fusible link wire/material to afford future protection in case of an electrical overload.

If I'm wrong and that isn't a fusible link someone please jump in, thanks!
Sugar Bear is online now
Old July 15th, 2023, 12:43 PM
  #45
Running On Empty

Vintage Chief's Avatar

Join Date: Jul 2018
Location: Earth
Posts: 18,235
Agree 100% - that is a fusible link.
Vintage Chief is online now
Old July 15th, 2023, 12:55 PM
  #46
Running On Empty

Vintage Chief's Avatar

Join Date: Jul 2018
Location: Earth
Posts: 18,235
Originally Posted by Dynoking
Can anyone explain the function and location of the “ALT/GEN (charge light) sensor switch”?
Point taken. Not 100% on this, in lieu of no CSM, no wiring diagram & no member assistance (thus far), I believe there exists an in-line resistor (calling it a ALT/GEN sensor switch) somewhere in the electrical circuit - I suspect; obviously, I can't validate this w/o a wiring diagram. On certain other vehicles, at some point in some electrical systems I believe manufacturers inserted a resistor to "sense" a state of charging condition. A wiring diagram would be nice.
Vintage Chief is online now
Old July 15th, 2023, 01:01 PM
  #47
Running On Empty

Vintage Chief's Avatar

Join Date: Jul 2018
Location: Earth
Posts: 18,235
Originally Posted by Sugar Bear
I believe the burned section is a fusible link, a wire intentionally placed and designed to melt and interrupt the circuit to protect the rest of the wiring and the entire car from igniting. Replace it with the proper fusible link wire/material to afford future protection in case of an electrical overload.

If I'm wrong and that isn't a fusible link someone please jump in, thanks!
At this point it would be nice to see an electrical wiring diagram from one of these two manuals as pointed out by rocketraider. It should certainly demonstrate the wire gauge for the fusible link.


Vintage Chief is online now
Old July 15th, 2023, 02:16 PM
  #48
Registered User
Thread Starter

mrtoronadoman's Avatar

Join Date: Jun 2023
Posts: 31
Originally Posted by Vintage Chief
At this point it would be nice to see an electrical wiring diagram from one of these two manuals as pointed out by rocketraider. It should certainly demonstrate the wire gauge for the fusible link.


, After taking it apart, it appears to be a smaller gauge wire than the long red one with what looks like a butt connector in the middle. I’m at work now and was thinking of buying some wire while I’m here so I can put it all together when I get home. Or without knowing the gauge, the best I can do is get something that I can visibly see is smaller than the red wire.
mrtoronadoman is offline
Old July 15th, 2023, 02:28 PM
  #49
Registered User

Sugar Bear's Avatar

Join Date: Aug 2011
Posts: 3,053
Using the wrong wire is a mistake, it removes the protection afforded by the correct fusible link. Research this first but I think fusible links are generally 2 wire sizes smaller than that which they are protecting. Again do your homework.
Sugar Bear is online now
Old July 15th, 2023, 03:35 PM
  #50
Running On Empty

Vintage Chief's Avatar

Join Date: Jul 2018
Location: Earth
Posts: 18,235
Originally Posted by Sugar Bear
Using the wrong wire is a mistake, it removes the protection afforded by the correct fusible link. Research this first but I think fusible links are generally 2 wire sizes smaller than that which they are protecting. Again do your homework.
I believe automotive industry standard is 4 gauges smaller than the wire the fusible link is protecting. Albeit, a 14 gauge wire would be protected by an 18 gauge wire. NOTE: Critically important is the correct length. The fusible link wire needs to be the exact same length as the one you are removing. Without a wiring diagram it's tough to say what the gauge is of the red wire the black fusible link wire is protecting; although, if you can visually witness a gauge number on the longer red wire, you'd be able to arrive at the correct gauge of the fusible link wire. As Sugar Bear has suggested, do some homework on the correct sizing of a fusible link. Again, ensure the fusible link wire is of the exact same length, as well.

Finally, I don't believe we know with certainty what caused this fusible link to lose its integrity; so, there may still exist some work ahead - maybe, or maybe not. You can continue troubleshooting if you so desire. It would "appear" the fusible link did not BURN and it did NOT completely lose its integrity. It doesn't appear to have been burned through & apparently it still maintained some (minimal) integrity (I guess) since the car started. However, this thread began with suggestions regarding two fusible links located near the starter solenoid. Is this particular fusible link a different fusible link than depicted in the image(s) above located near the starter solenoid - indicating this is at least a third fusible link? Would be nice if someone had a wiring diagram, eh?
Vintage Chief is online now
Old July 15th, 2023, 03:39 PM
  #51
Running On Empty

Vintage Chief's Avatar

Join Date: Jul 2018
Location: Earth
Posts: 18,235
Upon further evaluation of that fusible link wire, it appears someone else has had an issue with that particular fusible link since it appears to be covered in handyman electrical tape which is NOT correct for ANY fusible link.

EDIT: Oh hell - maybe the fusible link wire "is" broken - I don't know hard to see clearly. Maybe that's why the ALT/GEN (charge light) is ON? Anyone have a wiring diagram?

Last edited by Vintage Chief; July 15th, 2023 at 03:50 PM.
Vintage Chief is online now
Old July 15th, 2023, 04:32 PM
  #52
Registered User
Thread Starter

mrtoronadoman's Avatar

Join Date: Jun 2023
Posts: 31
So I’ve been able to figure out that the red portion is indeed a 10G wire. That is the spec on the AC Delco replacement part. Also compared mine to some 10G wire here in-store. Also confirmed automotive standard is 4 smaller than the main wire and 3-4inches in length. I have some 14 gauge set aside as well.
mrtoronadoman is offline
Old July 15th, 2023, 04:41 PM
  #53
Running On Empty

Vintage Chief's Avatar

Join Date: Jul 2018
Location: Earth
Posts: 18,235
Grab a full-circle enclosed "O" end-terminal to replace that open "C" terminal at the alternator, as well.
Vintage Chief is online now
Old July 15th, 2023, 04:51 PM
  #54
Running On Empty

Vintage Chief's Avatar

Join Date: Jul 2018
Location: Earth
Posts: 18,235
And, once you get the wiring in order, measure your battery voltage at the battery w/ the car running to validate the alternator is charging correctly. Post #40
Vintage Chief is online now
Old July 16th, 2023, 08:30 AM
  #55
Oldsdruid

rocketraider's Avatar

Join Date: Dec 2007
Location: Southside Vajenya
Posts: 10,305
Go to the parts store and get a PROPER fusible link to replace the burned one. Can't overemphasize how important that is. Fusible link wire IS different from standard automotive wiring and the things are readily available.

The fusible link did its job. No need of compromising it.
rocketraider is offline
Old July 16th, 2023, 08:33 AM
  #56
Registered User

Fun71's Avatar

Join Date: Feb 2013
Location: Phoenix, AZ
Posts: 13,849
You work at an auto parts store, right? Your store should sell fusible links.
Fun71 is offline
Old July 16th, 2023, 09:09 AM
  #57
Registered User

Dynoking's Avatar

Join Date: Jul 2019
Posts: 285
Originally Posted by rocketraider
Go to the parts store and get a PROPER fusible link to replace the burned one. Can't overemphasize how important that is. Fusible link wire IS different from standard automotive wiring and the things are readily available. The fusible link did its job. No need of compromising it.
^^^THIS! ^^^
The fusible link is not just a smaller gauge wire. Hypalon rubber is used for insulation. It will melt rather than start a flame. Repair literature should be consulted to determine the proper replacement gauge.
Dynoking is offline
Old July 16th, 2023, 09:11 AM
  #58
Running On Empty

Vintage Chief's Avatar

Join Date: Jul 2018
Location: Earth
Posts: 18,235
Originally Posted by Dynoking
^^^THIS! ^^^
The fusible link is not just a smaller gauge wire. Hypalon rubber is used for insulation. It will melt rather than start a flame. Repair literature should be consulted to determine the proper replacement gauge.
Agree. It's the insulation protecting the fusible link wire which is important. Very good point.
Vintage Chief is online now
Old July 16th, 2023, 09:16 AM
  #59
Running On Empty

Vintage Chief's Avatar

Join Date: Jul 2018
Location: Earth
Posts: 18,235
Although, I don't believe Hypalon is manufactured any longer. Current wire insulation is made from Chlorosulfonated Polyethylene Rubber (CSM) so I'd suspect a fusible link would be made of CSM.
Vintage Chief is online now
Old July 16th, 2023, 07:31 PM
  #60
Registered User
Thread Starter

mrtoronadoman's Avatar

Join Date: Jun 2023
Posts: 31
For clarification, The wire I used was 14 ga “fusible link wire”. Also replaced the “C” connector with an “O”. Battery tests 14.6v when running, charge light is off. Unrelated but was also changing plugs during this project. P/O had Bosch Platinum (0.040”) installed and I went to AC Delco Copper (0.060”) and WOW what a difference. Runs like a new car.
mrtoronadoman is offline
Old July 16th, 2023, 08:02 PM
  #61
Oldsdruid

rocketraider's Avatar

Join Date: Dec 2007
Location: Southside Vajenya
Posts: 10,305
Glad the issue is resolved and no permanent damage.

My experience is Oldsmobile engines don't much like Bosch spark plugs. None of mine ever ran that well with them, and several friends had the same experience.
rocketraider is offline
Old July 17th, 2023, 03:55 AM
  #62
Running On Empty

Vintage Chief's Avatar

Join Date: Jul 2018
Location: Earth
Posts: 18,235
Good work.
Vintage Chief is online now
Old July 18th, 2023, 03:16 AM
  #63
Registered User

Dynoking's Avatar

Join Date: Jul 2019
Posts: 285
Originally Posted by rocketraider
Glad the issue is resolved and no permanent damage.

My experience is Oldsmobile engines don't much like Bosch spark plugs. None of mine ever ran that well with them, and several friends had the same experience.
X2. AC Delco for GM engines.
Dynoking is offline
