Looking for PCV Filter Valve for my 1965 Olds 442, the part can also be found on a 1964-67 Olds 330 rocket Jetfire engine. these Valves plug into the Valve cover to enable PCV system to connect to snorkel. not easy to find, i am flexible on price if in decent condition. please text me at 310 617 3070.

im based on Cali. thank you guys, much appreciated. David

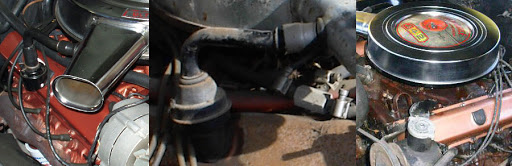

Is this the setup you're looking for?



yes the picture you attached on left looks like correct setup if you have that one... i see the air cleaner is large 442 style like mine. not sure middle pic. rigtht pic is driver side i have a breather where the grommet is.
david
310 617 3070



I do not. That is P/N 387189 and is called a filter, not a PCV valve.



right. the pcv sits inside i understand. thank you

david



The PCV is in the other valve cover with a hose to the carb. Look at the diagram from the part book that I posted.



In the diagram, the PCV is labeled "Valve Assy."



Text sent, assuming you want the one on the left which is a Lansing built car.



thank you roger. david



PCV has small hose that connects to carb. for 1965 442, anyone have opinion on whether hose connects to timed or untimed vacuum port on Carb (edelbrock 1406 ) ? thank you david



The only thing that ever connects to ported vacuum is the distributor vacuum advance, and on newer cars, the EGR valve control and the evap cannister purge control. Everything else goes to straight manifold vacuum.



ok so in back of actual manifold. the edelbrock however has a manifod vacuum nub on it... (1604). thank you Joe



Actually any place on the manifold or carb that provides full time manifold vacuum is fine.



Ok. Thank you Joe P. Very helpful. David



I have a complete set up but not sure if it goes to side of air cleaner or snorkel. I do want $100 shipped.



thank you gerald, found the parts. do appreciate your note.
