1966 to 1970 Oldsmobile Toronado Electrical Wiring Diagrams
1966 to 1970 Oldsmobile Toronado Electrical Wiring Diagrams
Note: If you are receiving any kind of request for access to my google drive. Please send me a text message and I will resolve it. David Threet 918-855-0047
I have compiled all of the electrical wiring diagrams for the first-generation Oldsmobile Toronado (1966–1970).
The images posted below are convenient for quick viewing, but for the highest resolution and easiest readability, I recommend downloading the PDF file linked below.
I hope these diagrams are helpful for your restoration, maintenance, or troubleshooting projects.

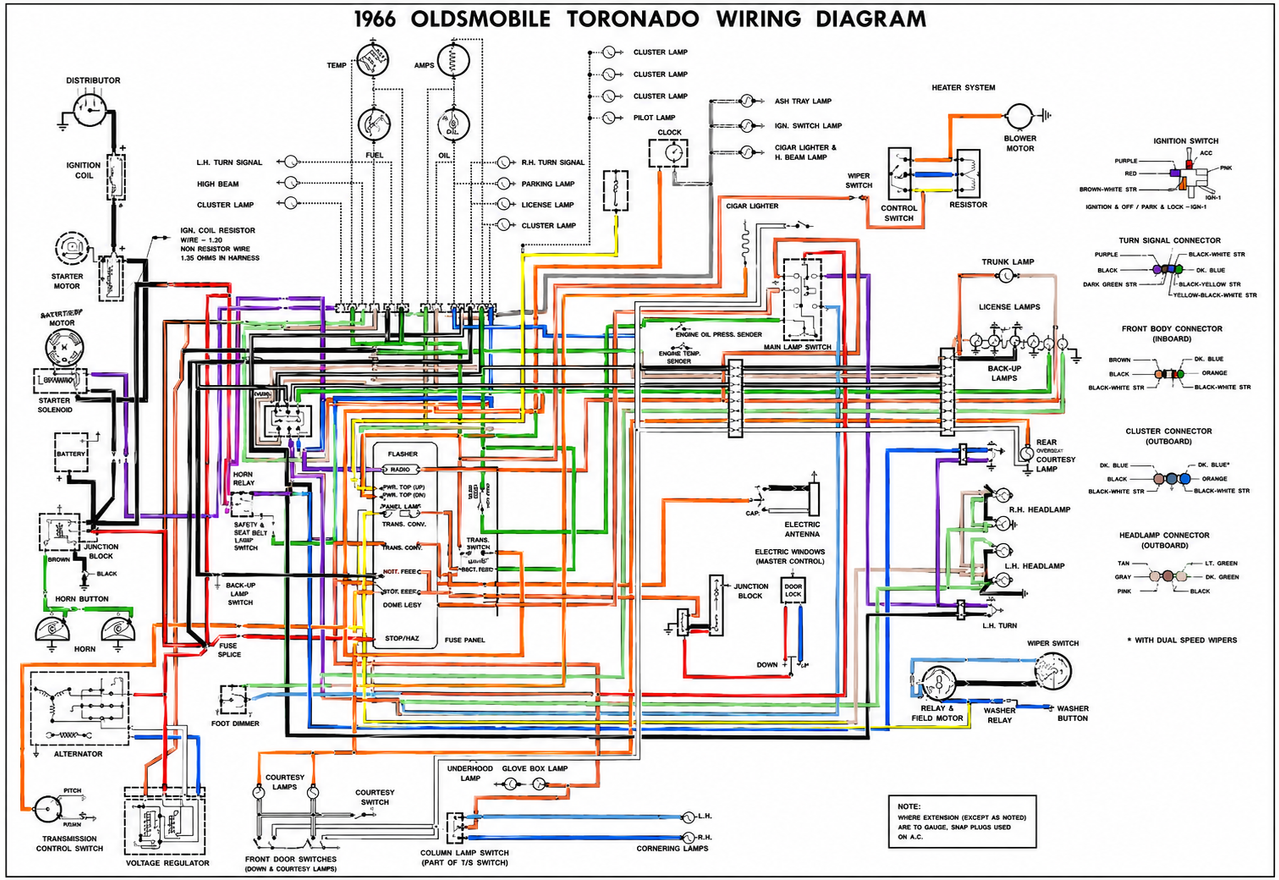

1966 Oldsmobile Toronado Electrical Wiring Diagrams

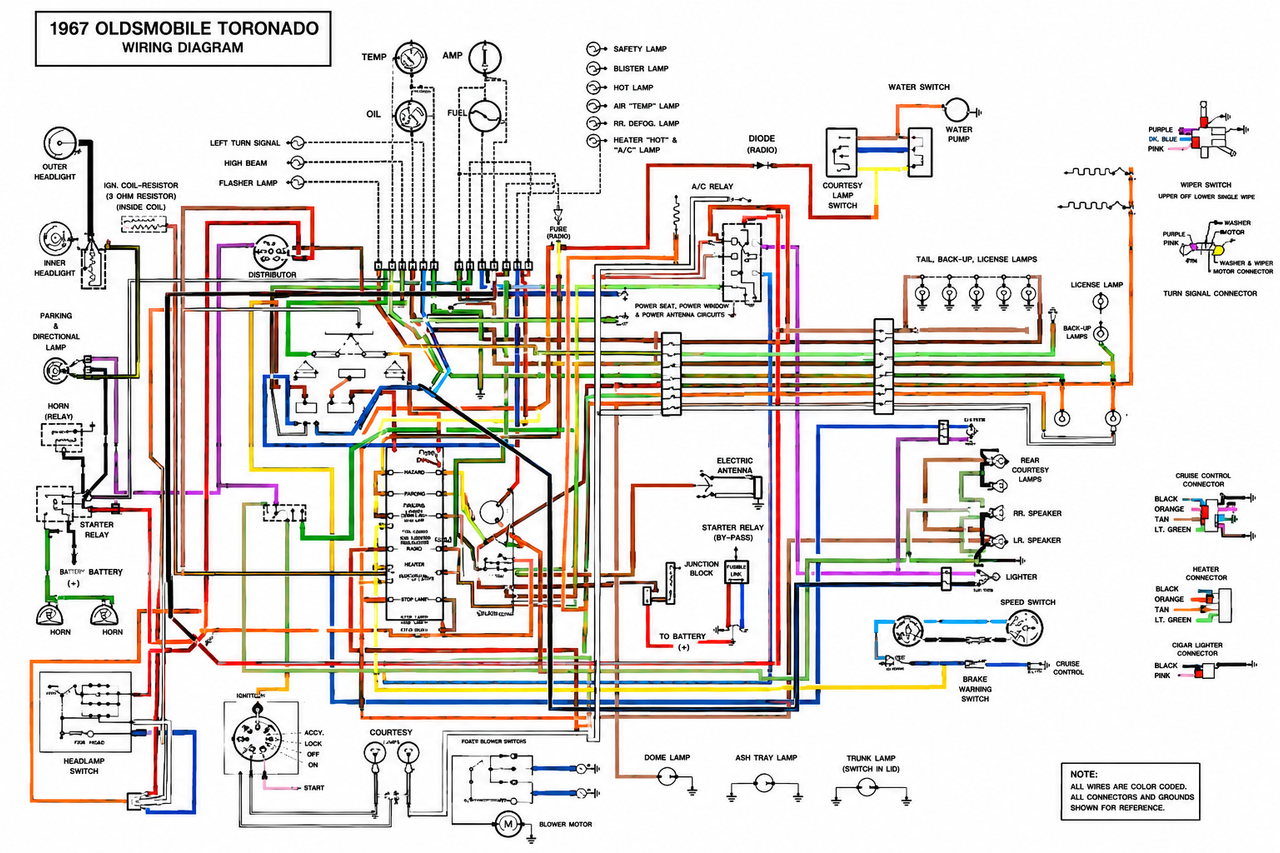

1967 Oldsmobile Toronado Electrical Wiring Diagrams

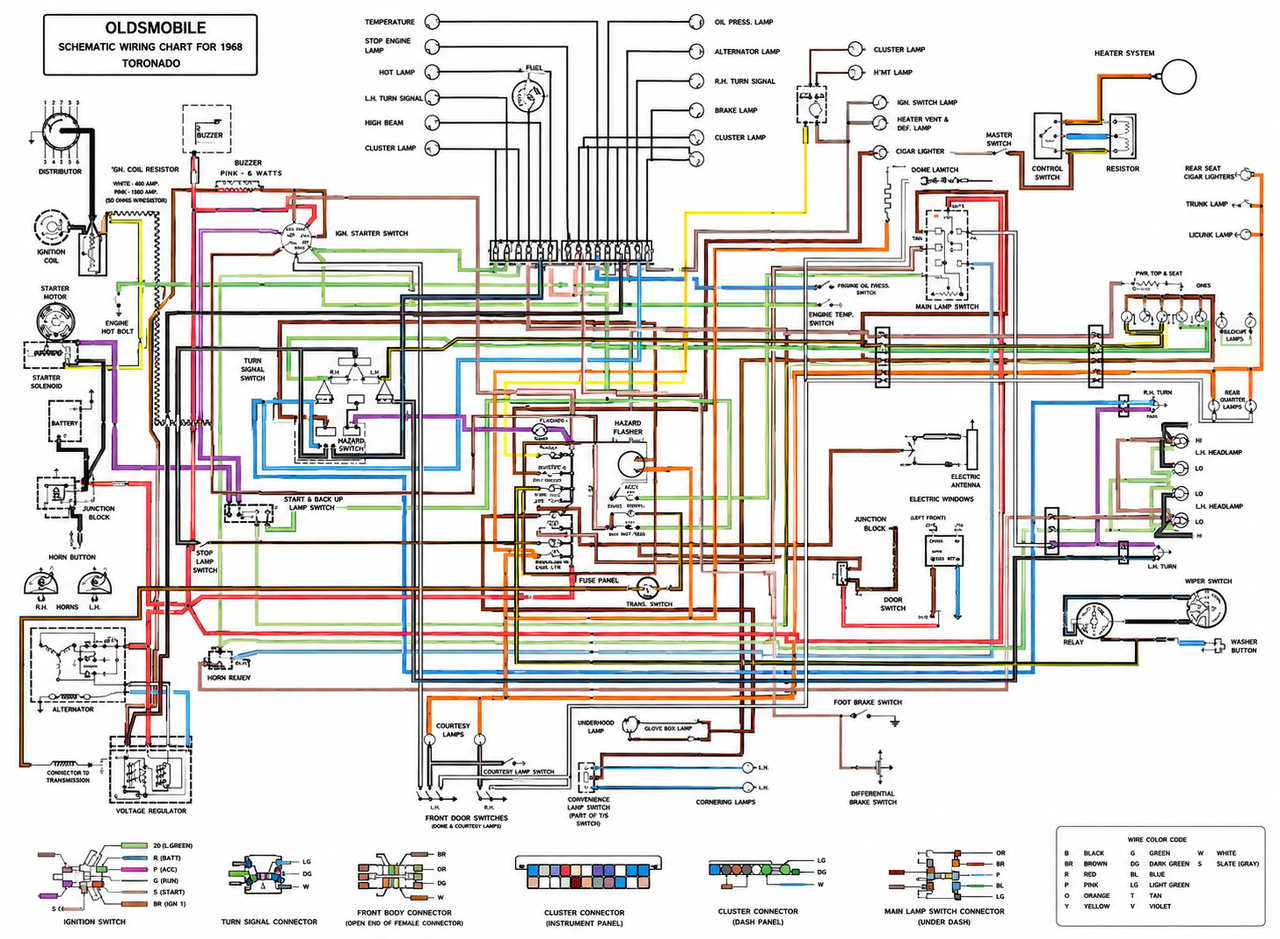

1968 Oldsmobile Toronado Electrical Wiring Diagrams

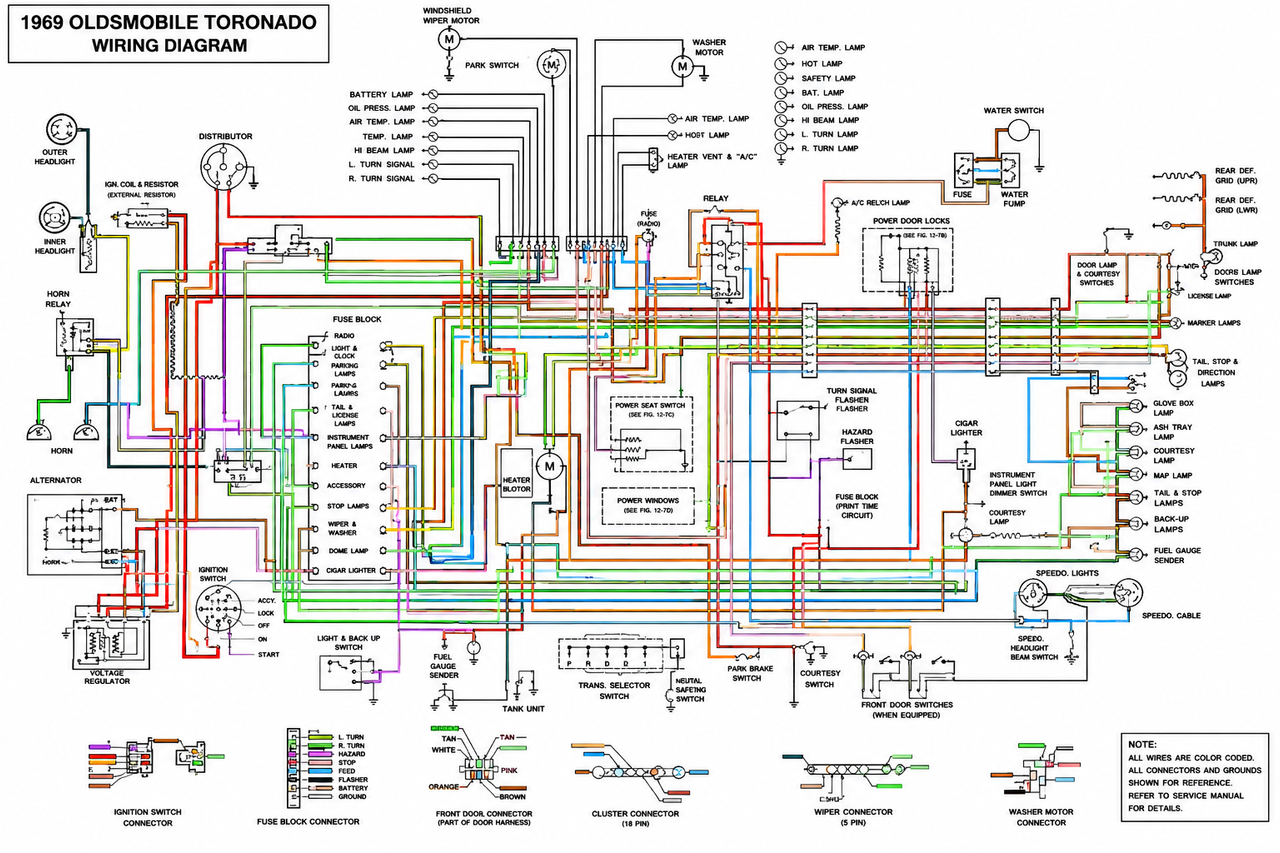

1969 Oldsmobile Toronado Electrical Wiring Diagrams

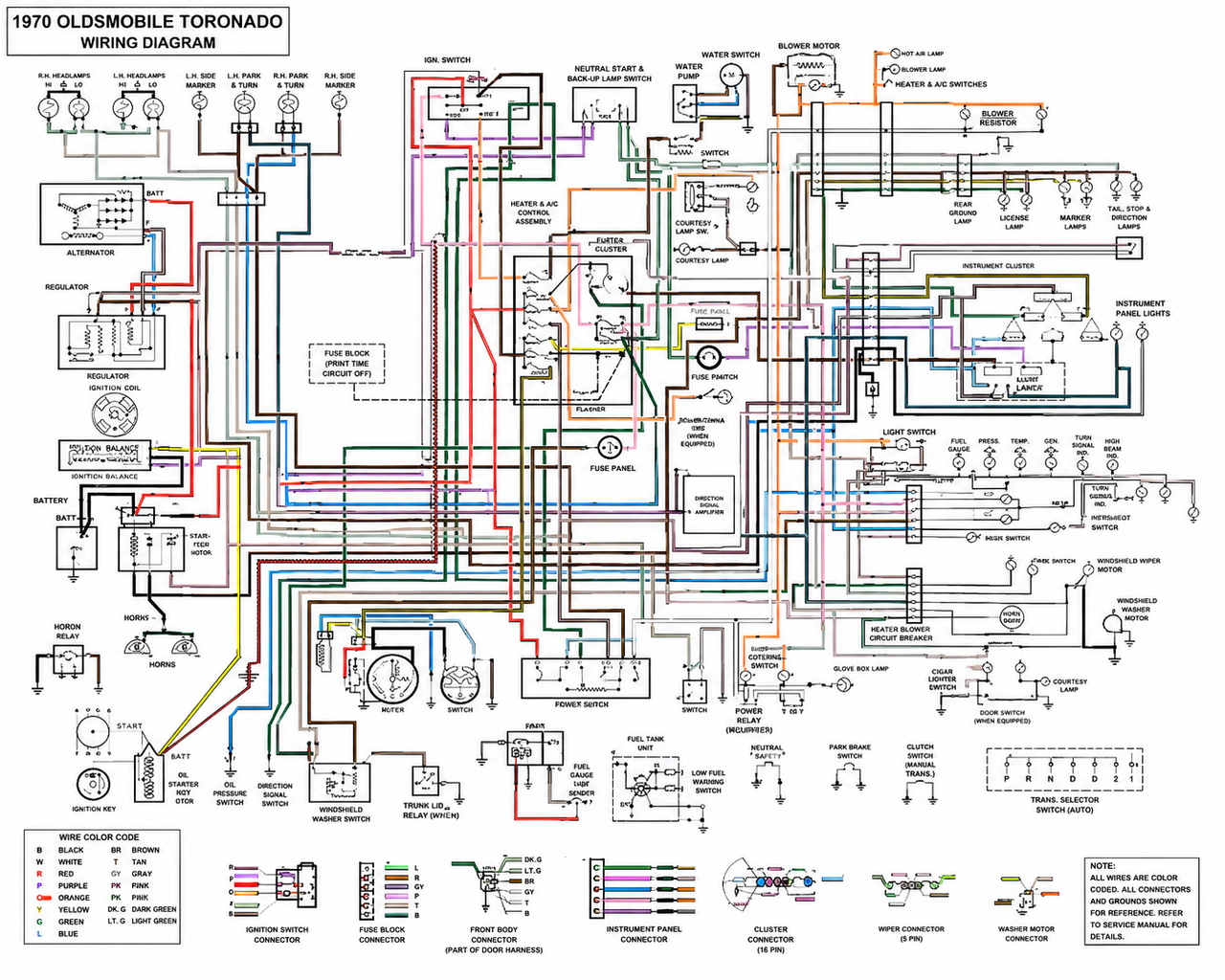

1970 Oldsmobile Toronado Electrical Wiring Diagrams

Google Drive Location (Combined PDF)
Click Here to download
