1966 to 1969 Toronado Headlamp Vacuum Diagrams
1966 to 1969 Toronado Hideaway Headlamp Vacuum Diagrams
Note: If you are receiving any kind of request for access to my google drive. Please send me a text message and I will resolve it. David Threet 918-855-0047
Here are the 1966 to 1969 Toronado Hideaway Headlight Diagrams. I have color coated all the lines to correspond with original factory hoses. I have also added the hose size for anyone who is doing hose replacements. Personally, I have found buying colored silicone vacuum replacement hose online very useful and helpful with future troubleshooting. 1968 and 1969 headlight systems are the same, except there is not red hose going from the control valve to the headlight switch. I hope this information is useful to everyone…

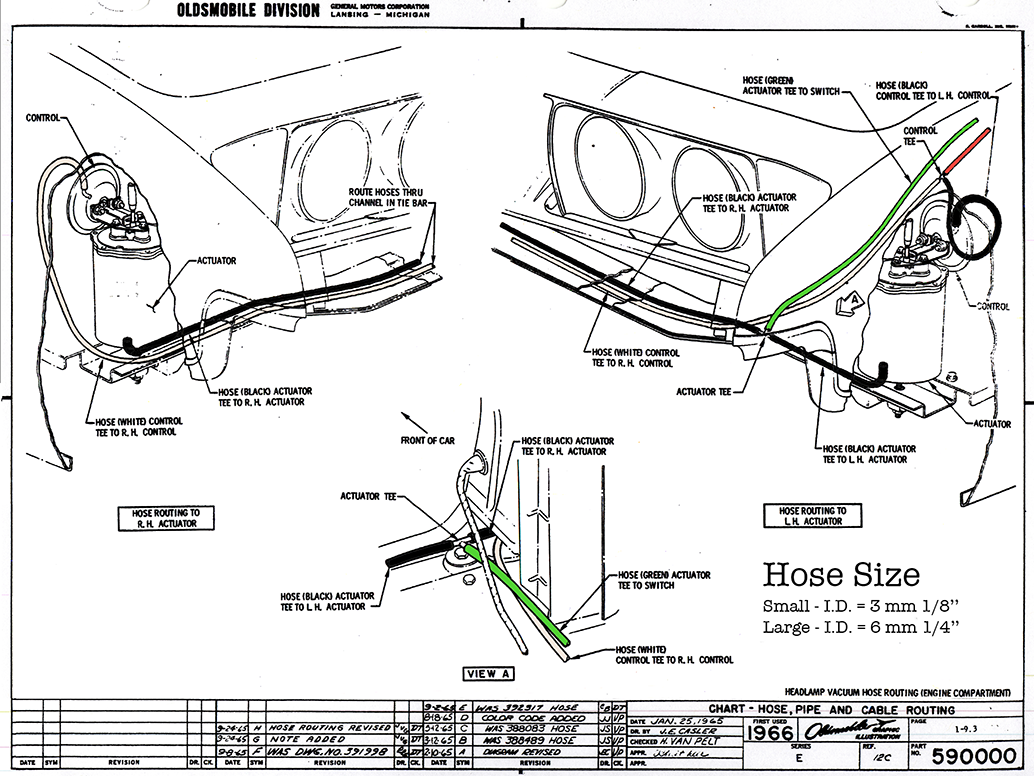

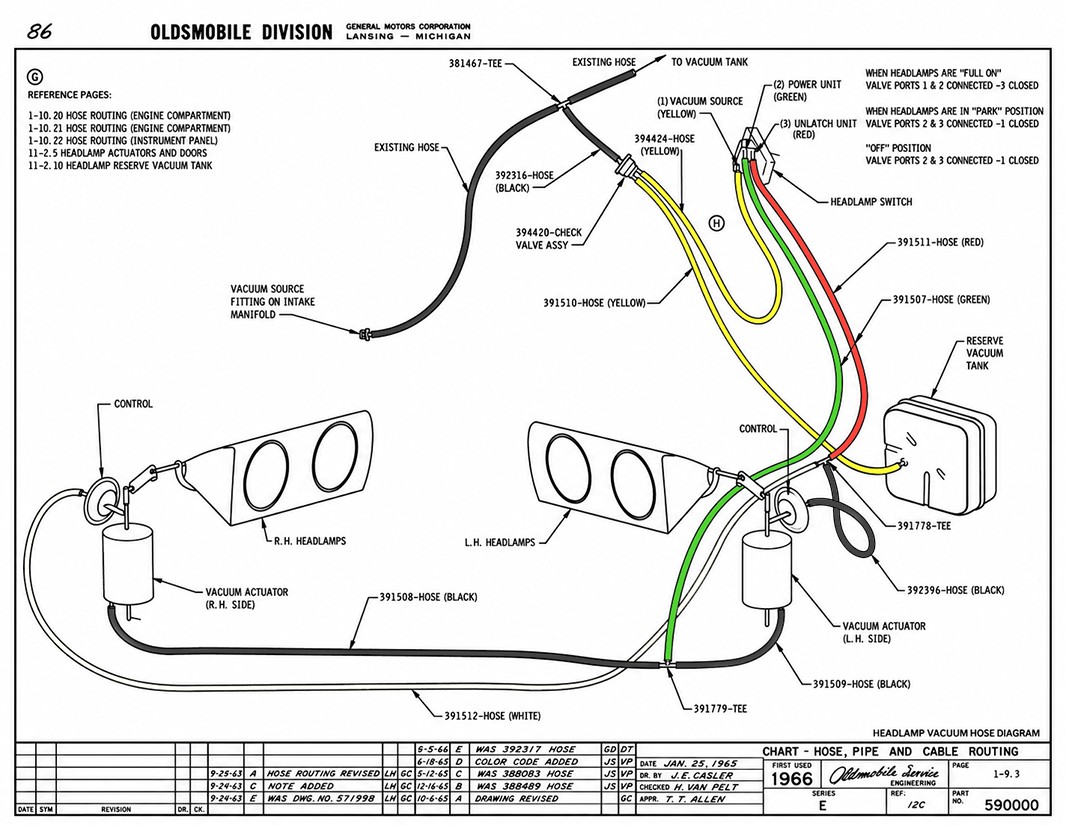

1966 Hideaway Headlight Diagrams

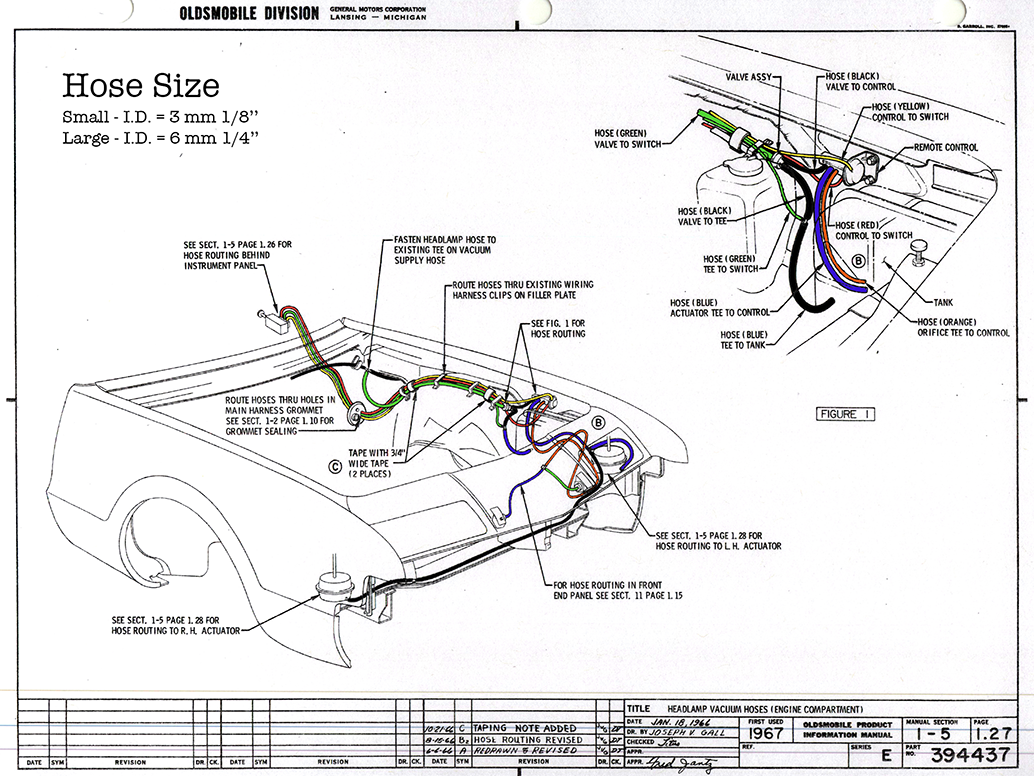

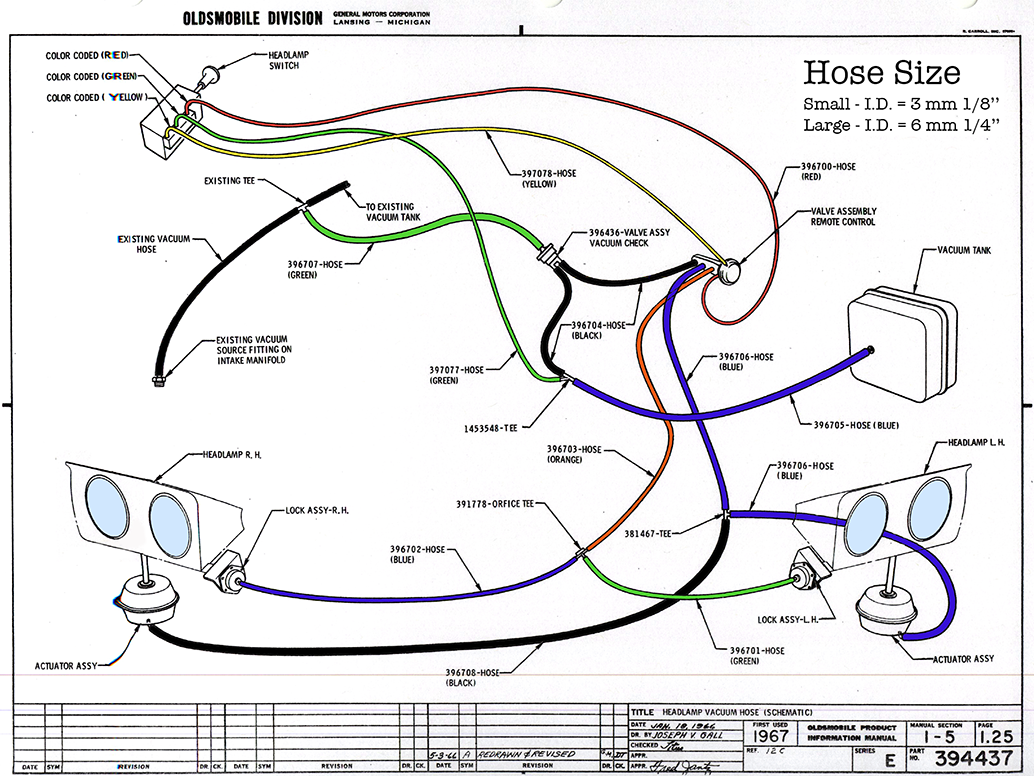

1967 Hideaway Headlight Diagrams

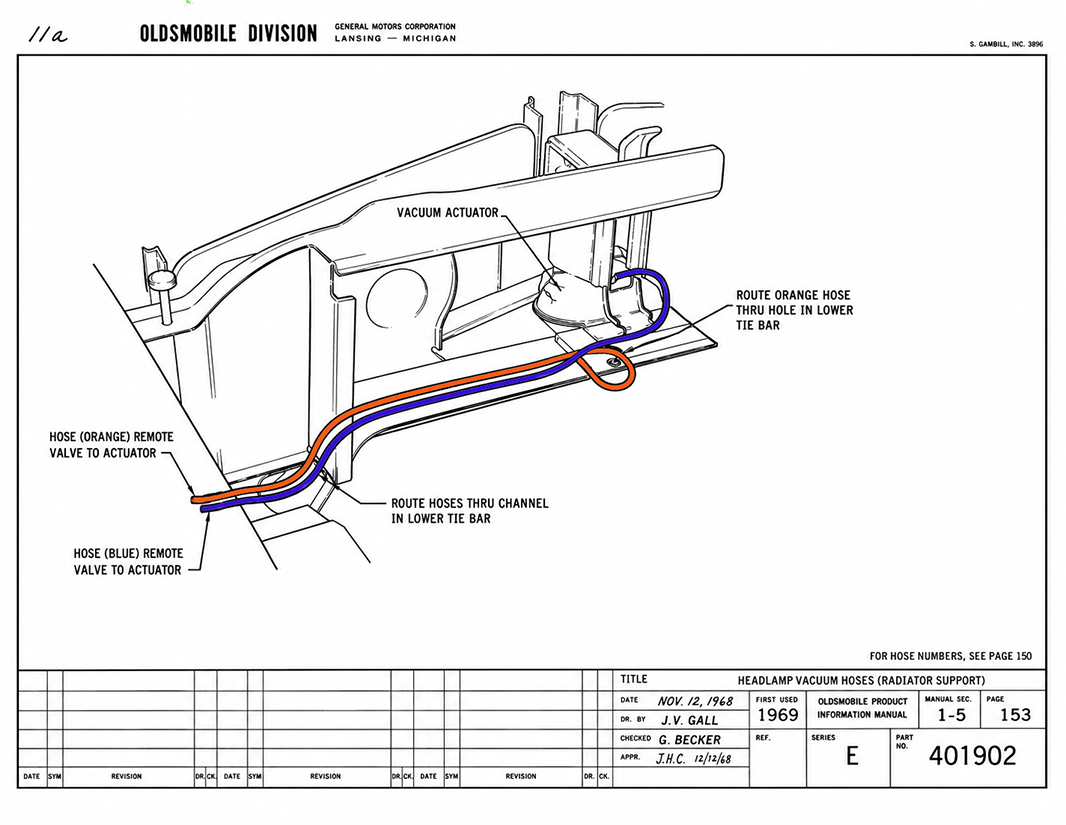

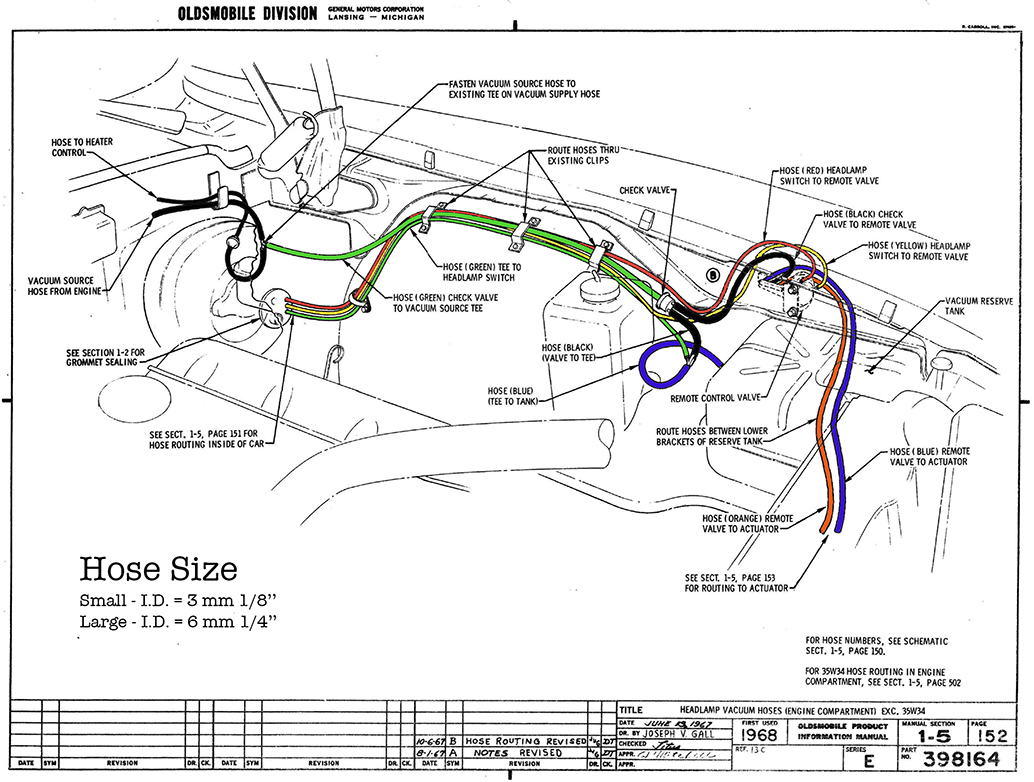

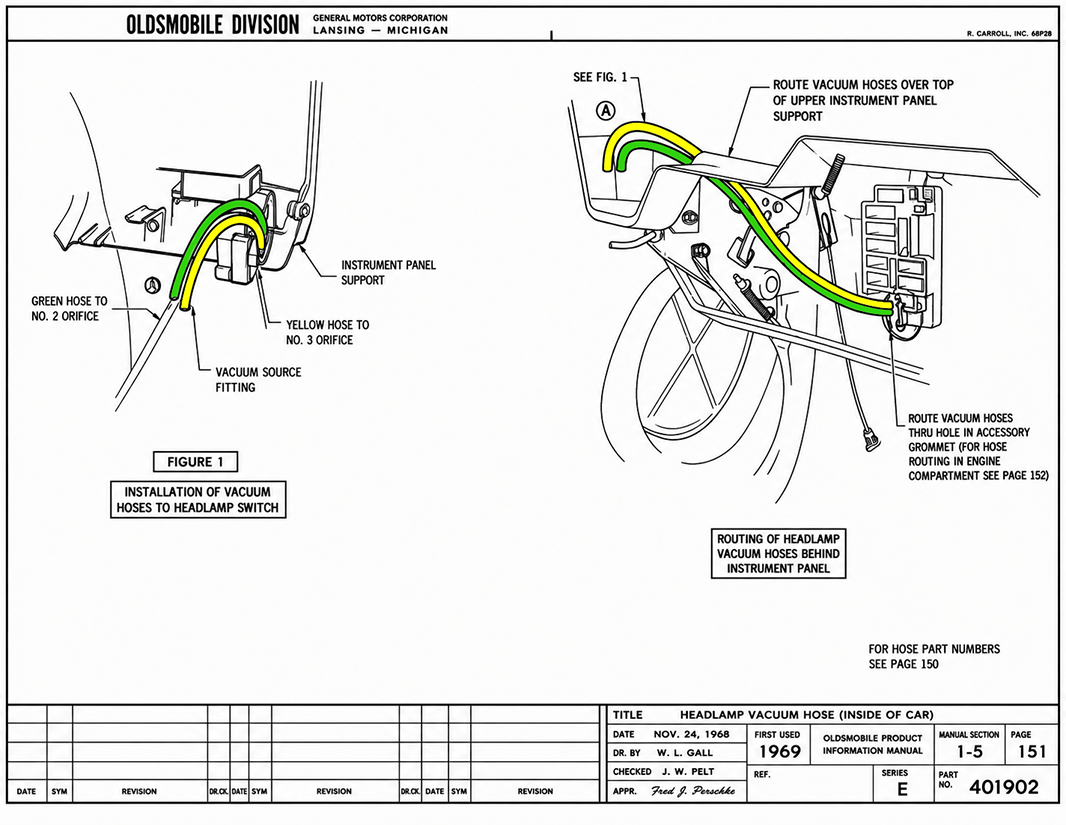

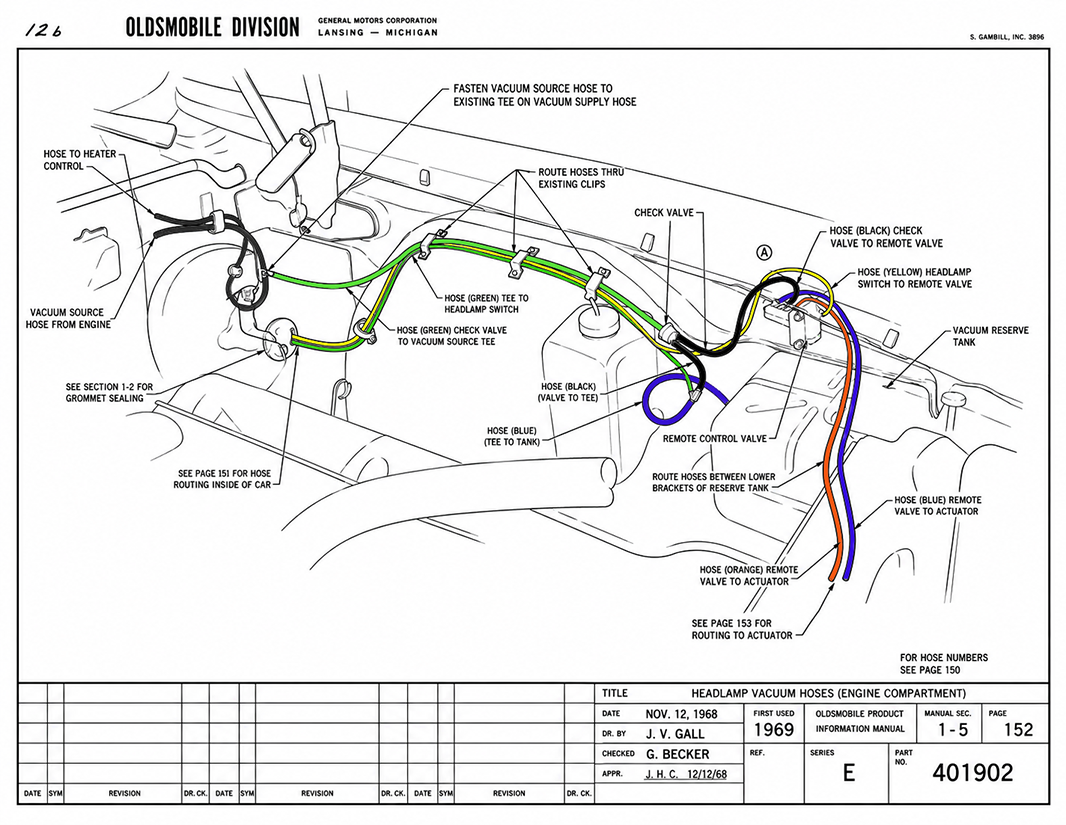

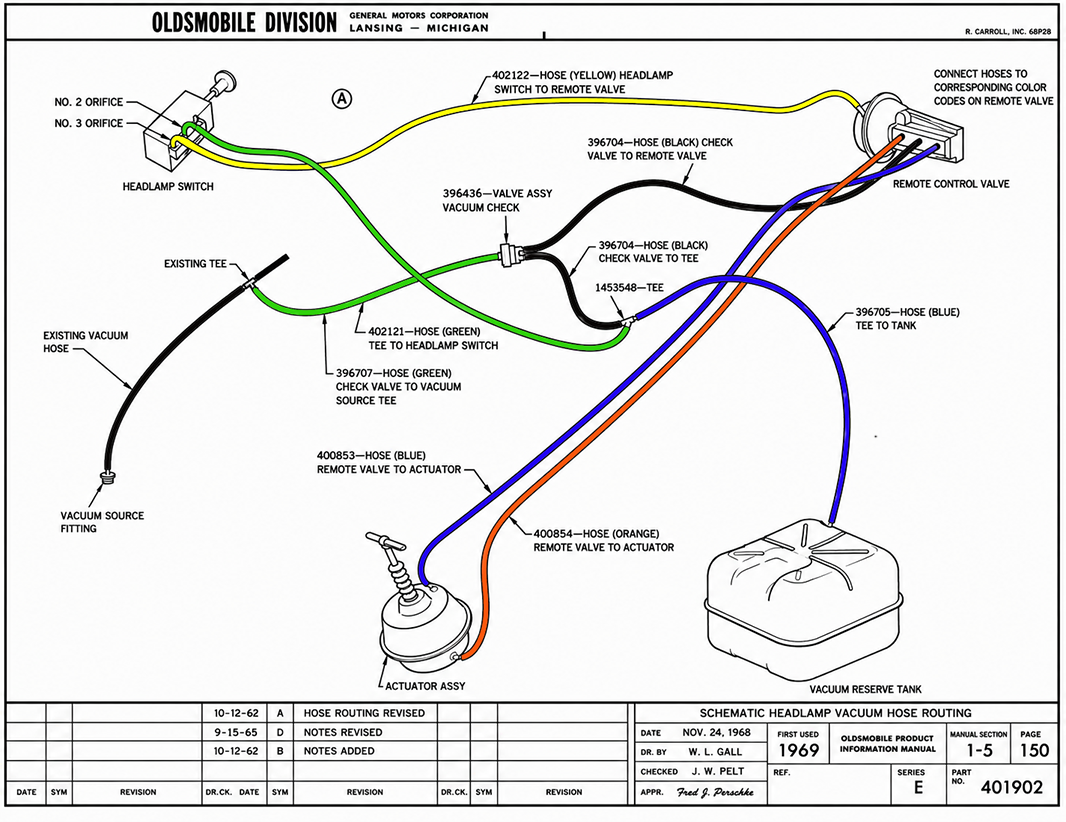

1968 and 1969 Hideaway Headlight Diagrams (1969 No Red Hose)

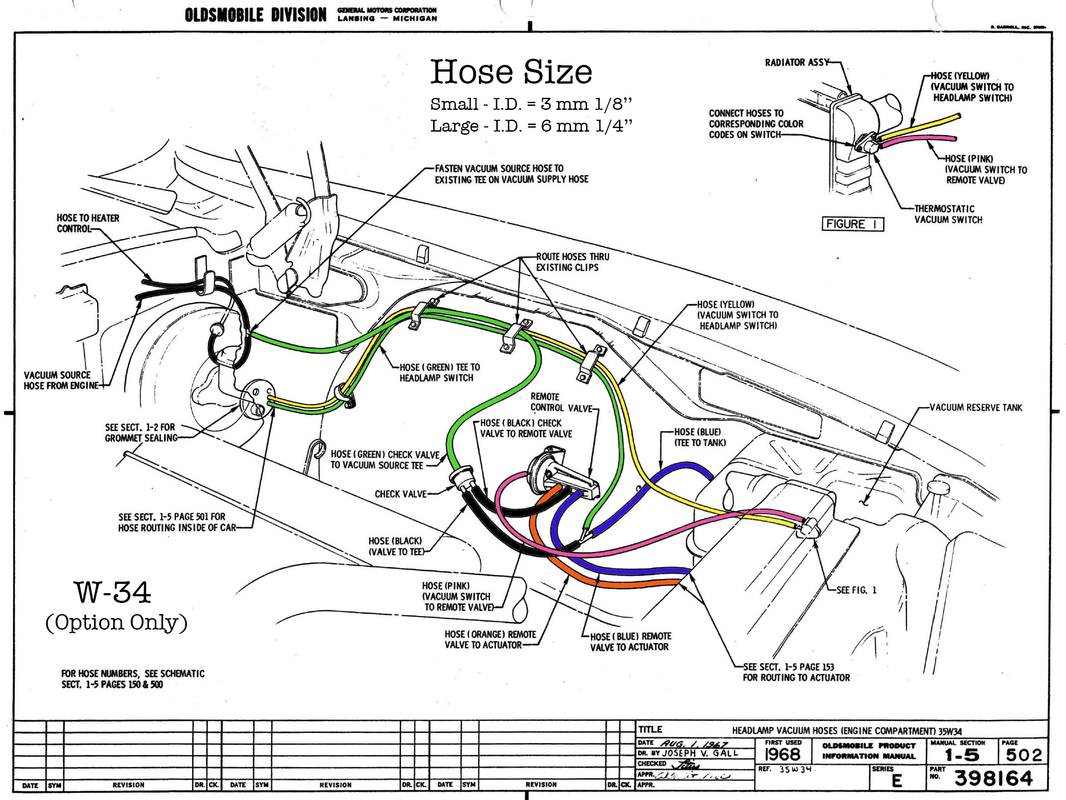

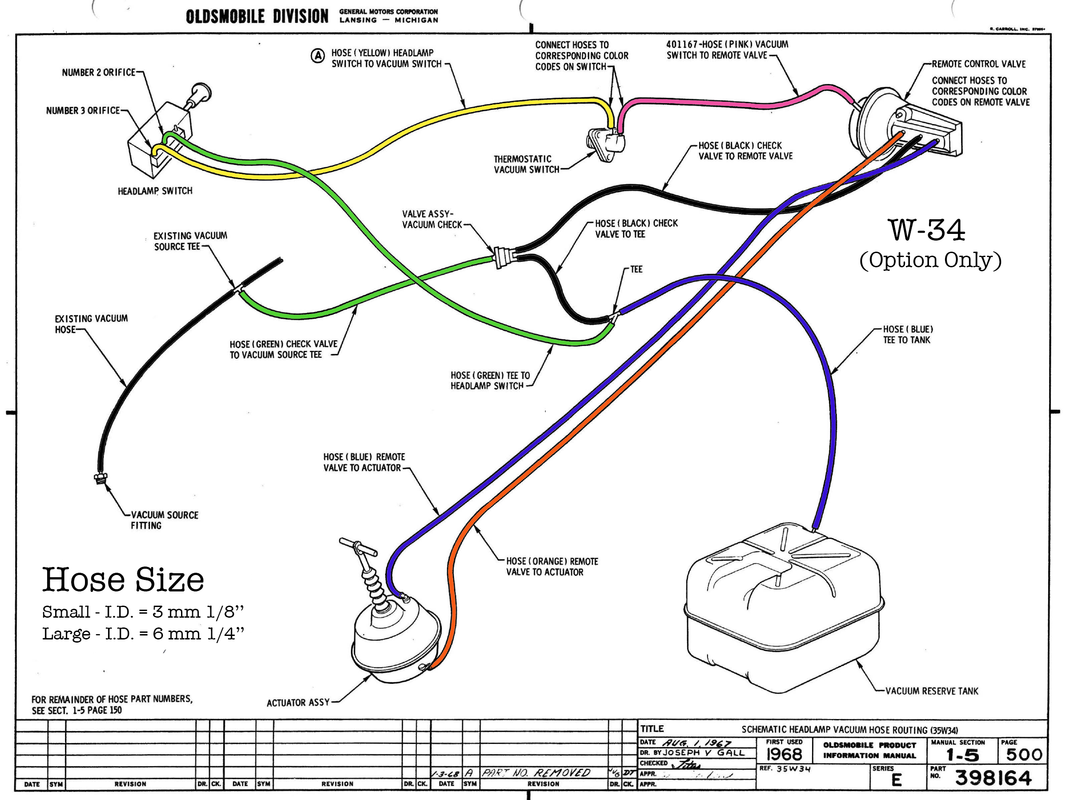

1968 Hideaway Headlight Diagrams (W-34 Only)
Google Drive Location (Combined PDF)
Click Here to download
