In search of a clean set of 70' headlight brackets. Must be pit free.
Thanks,
Rick

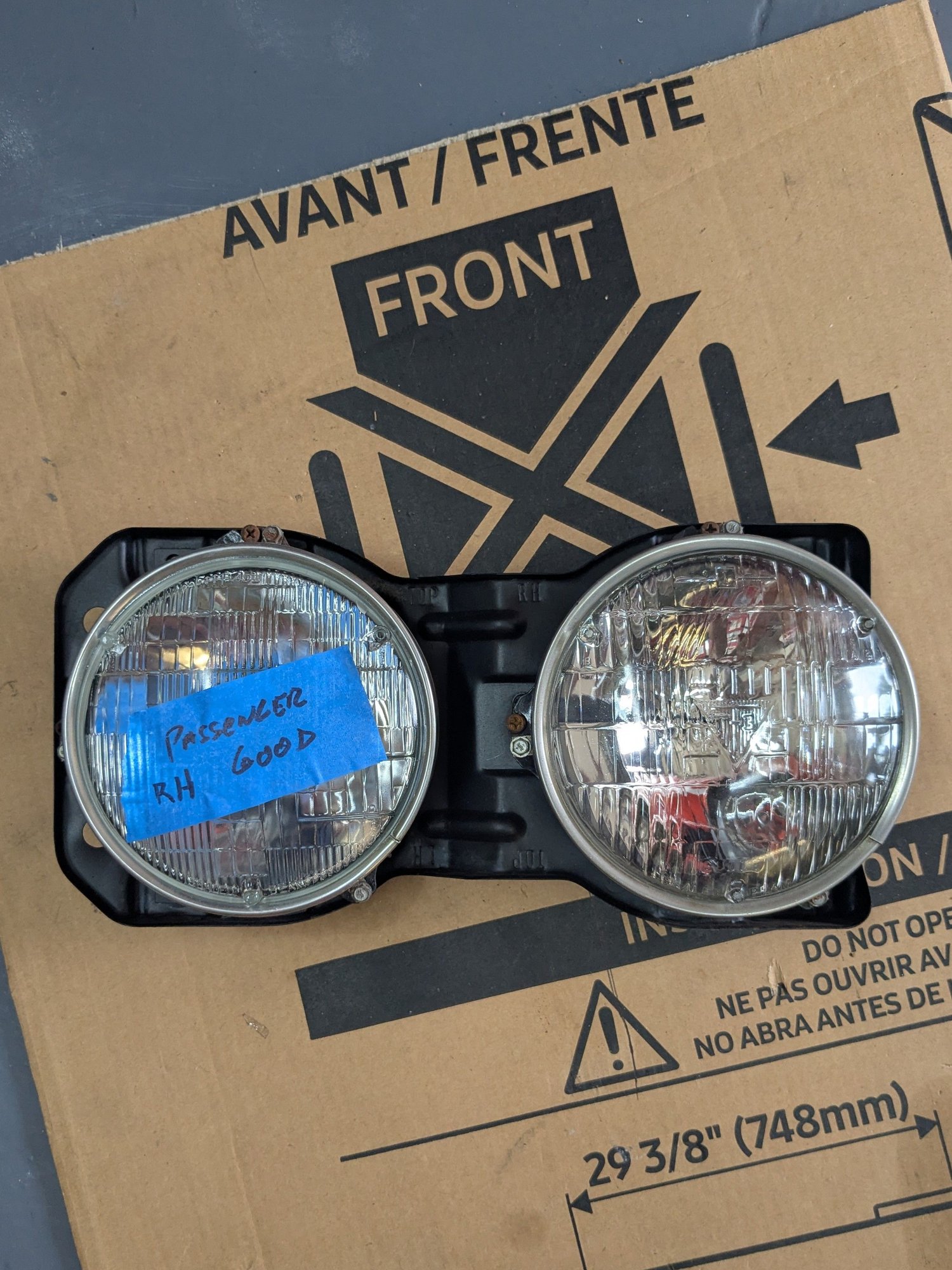

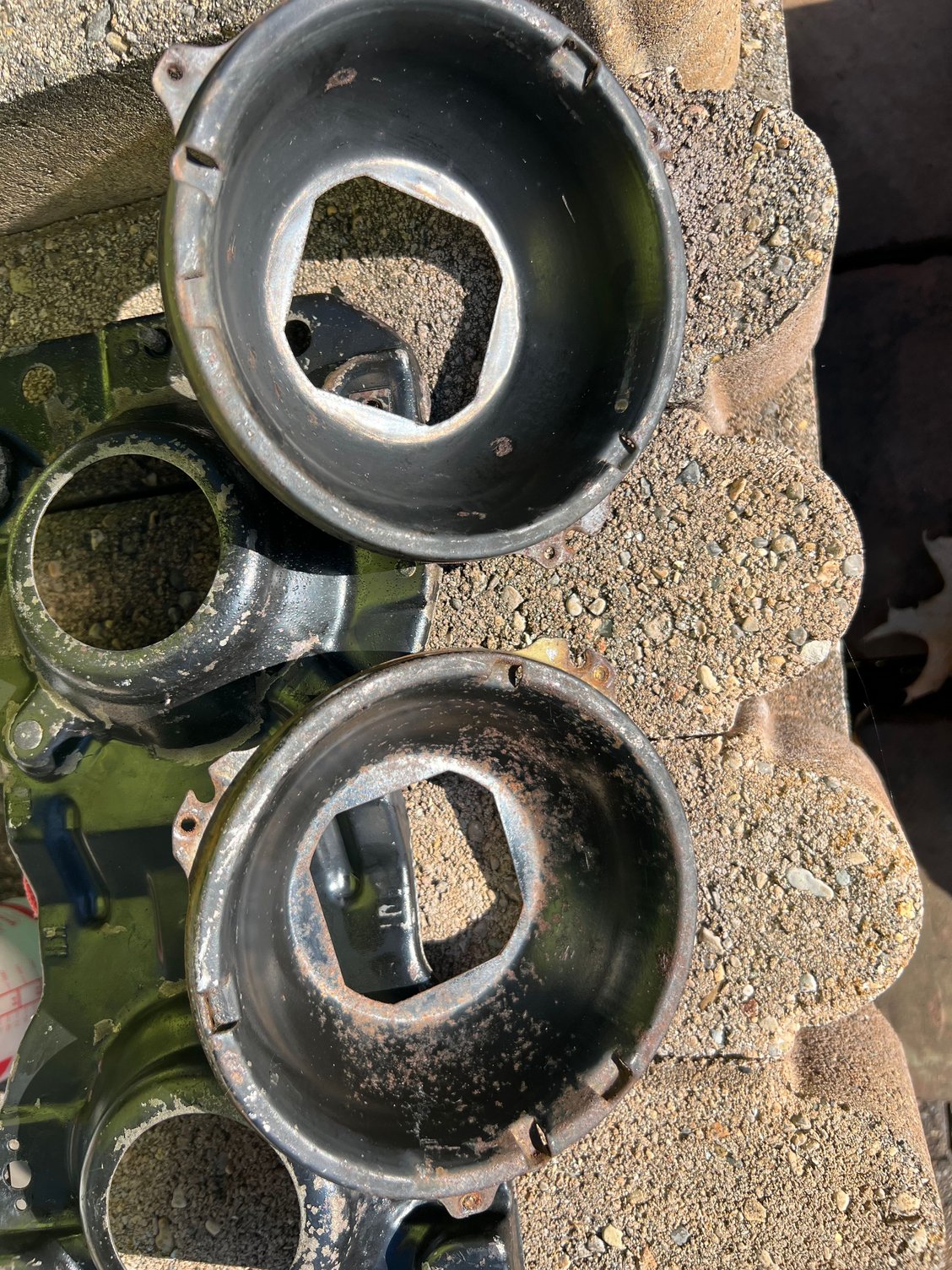

Good morning Rick, having a moment, when you say brackets is this what your looking for (these are some random pics not spec 70)

let me know, Brett



Yes Brett, that is what I am looking for.
Thanks



Do you need L & R complete with light buckets ?
I should have all, can check tonight for you



Hi Brett,
The assemblies you show above are for 71-72.
I need a left Drivers side headlight assembly for a 70.
70 is a one year only assembly.



I would also need the buckets labeled "A" and "B".

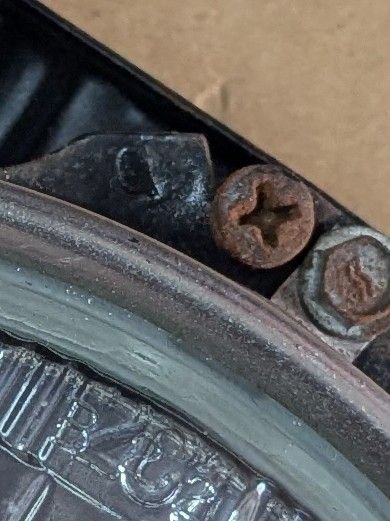

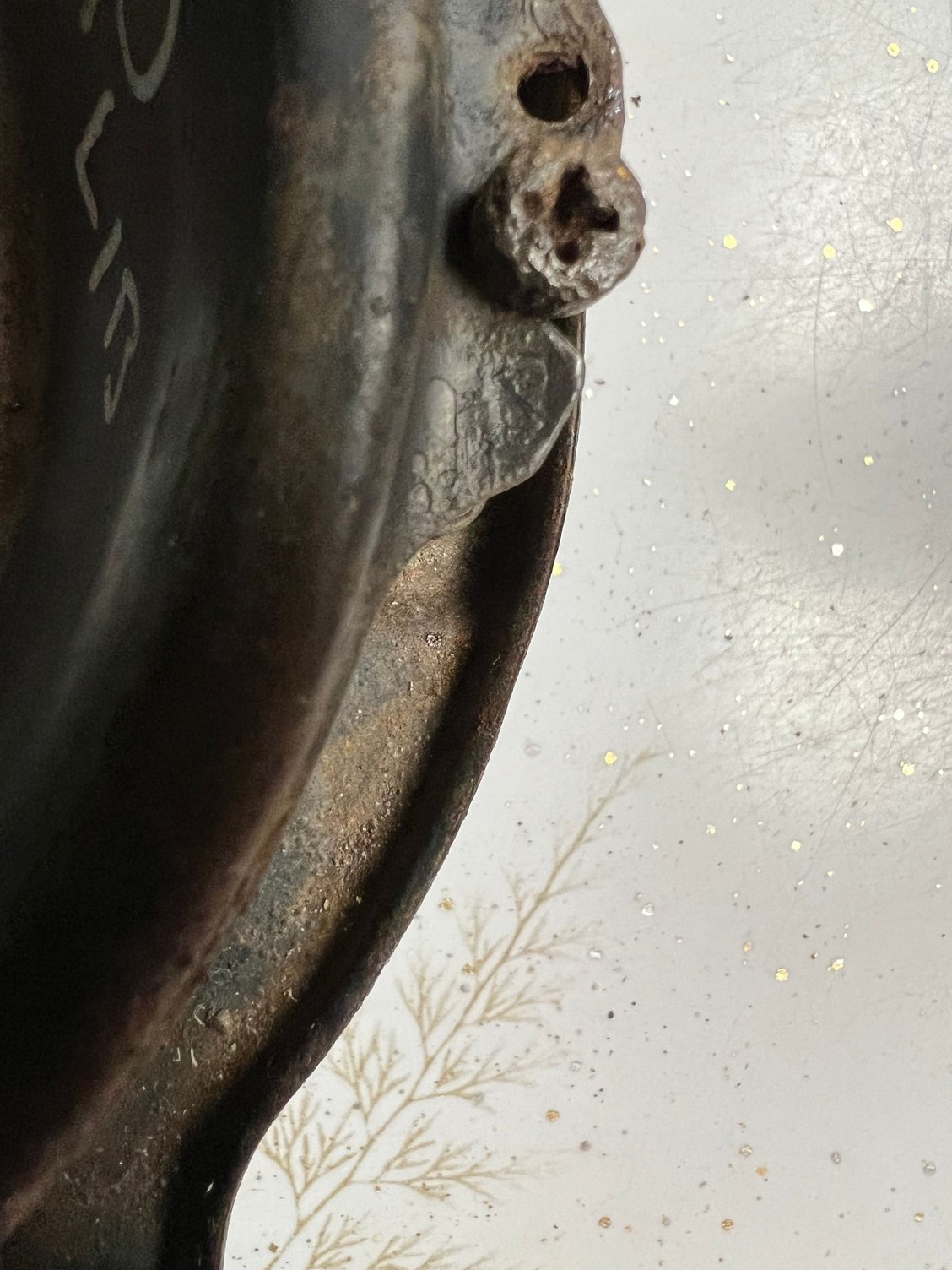

The letters are stamped directly next to the upper adjustment screw.

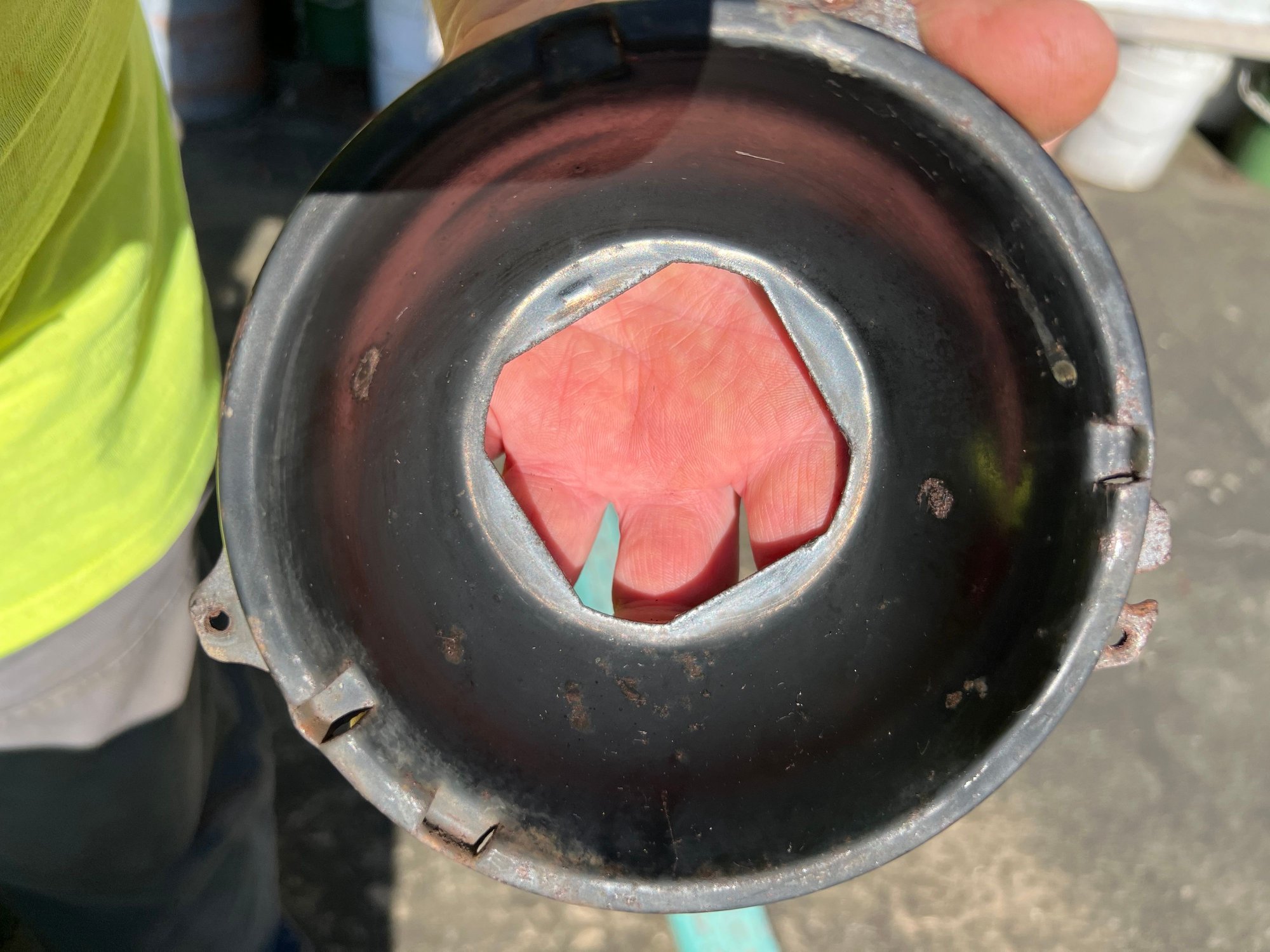

This one is a "D" . Belongs to the right passenger side.
The buckets are "A" and "B" for the Left Drivers side.
And "C" and "D" for the Right Passenger side.
They get installed from left to right in order. A -B - C- D.



If Brett does not have what you need let me know. I think I have this. Hope you are doing well Rick.

Don W



These were posted a few days ago, no idea if a sale has been made yet or not.

https://classicoldsmobile.com/forums...mblies-185798/



Rick, yes am aware of pics just happened to have the 71-2 on my phone
i have a few sets, some flash rust. Will give a clean and get better pics for you

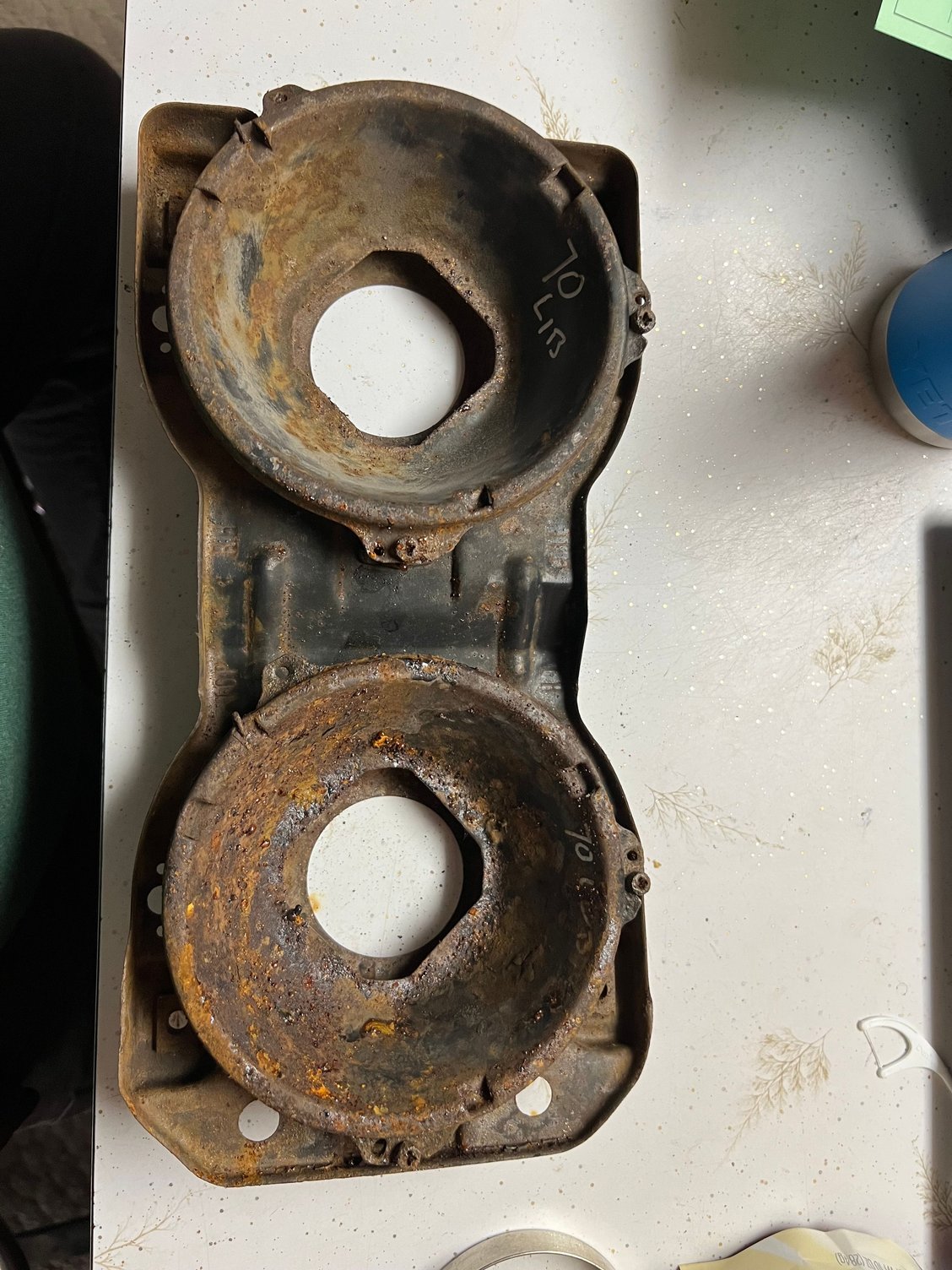

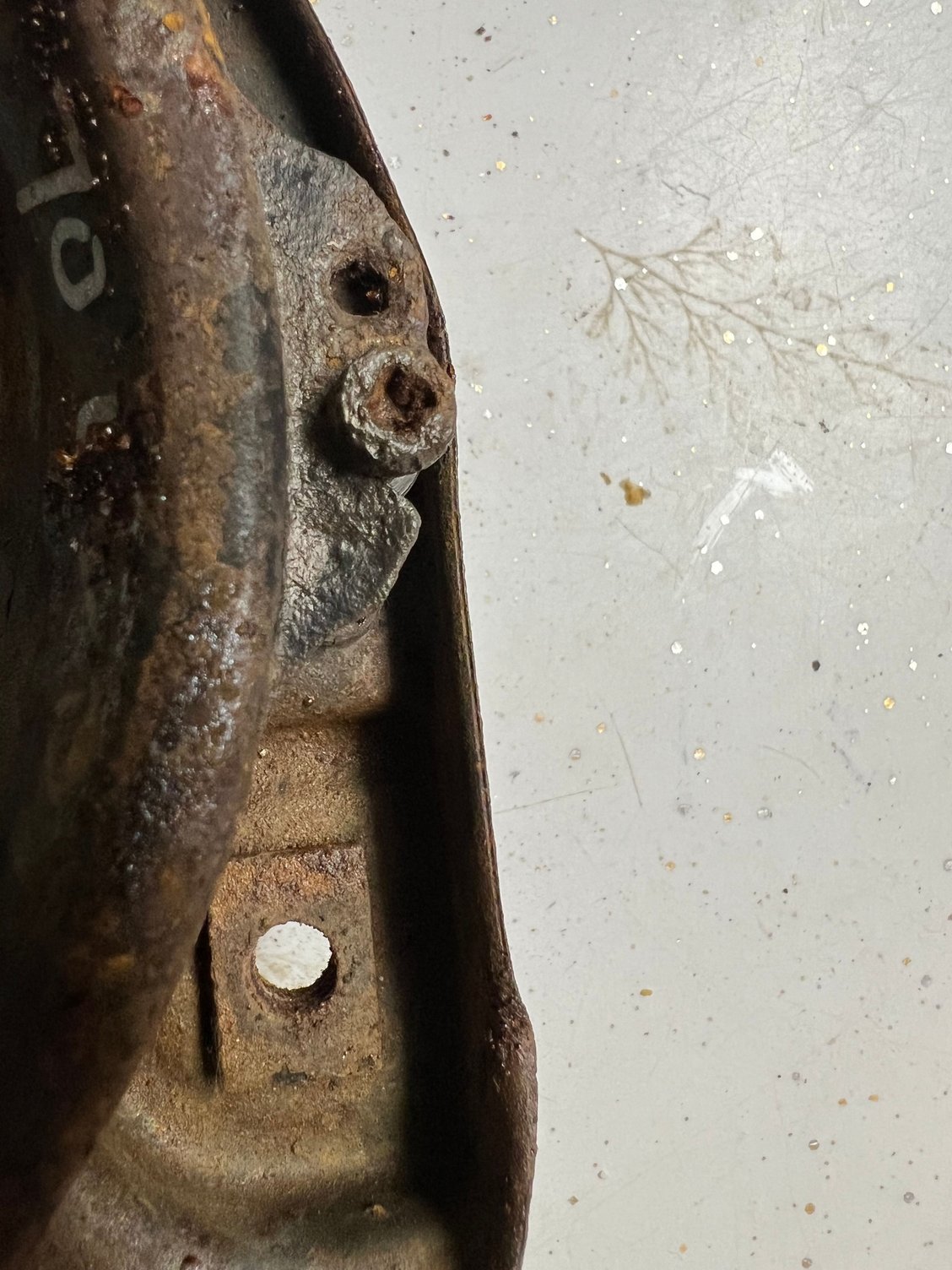

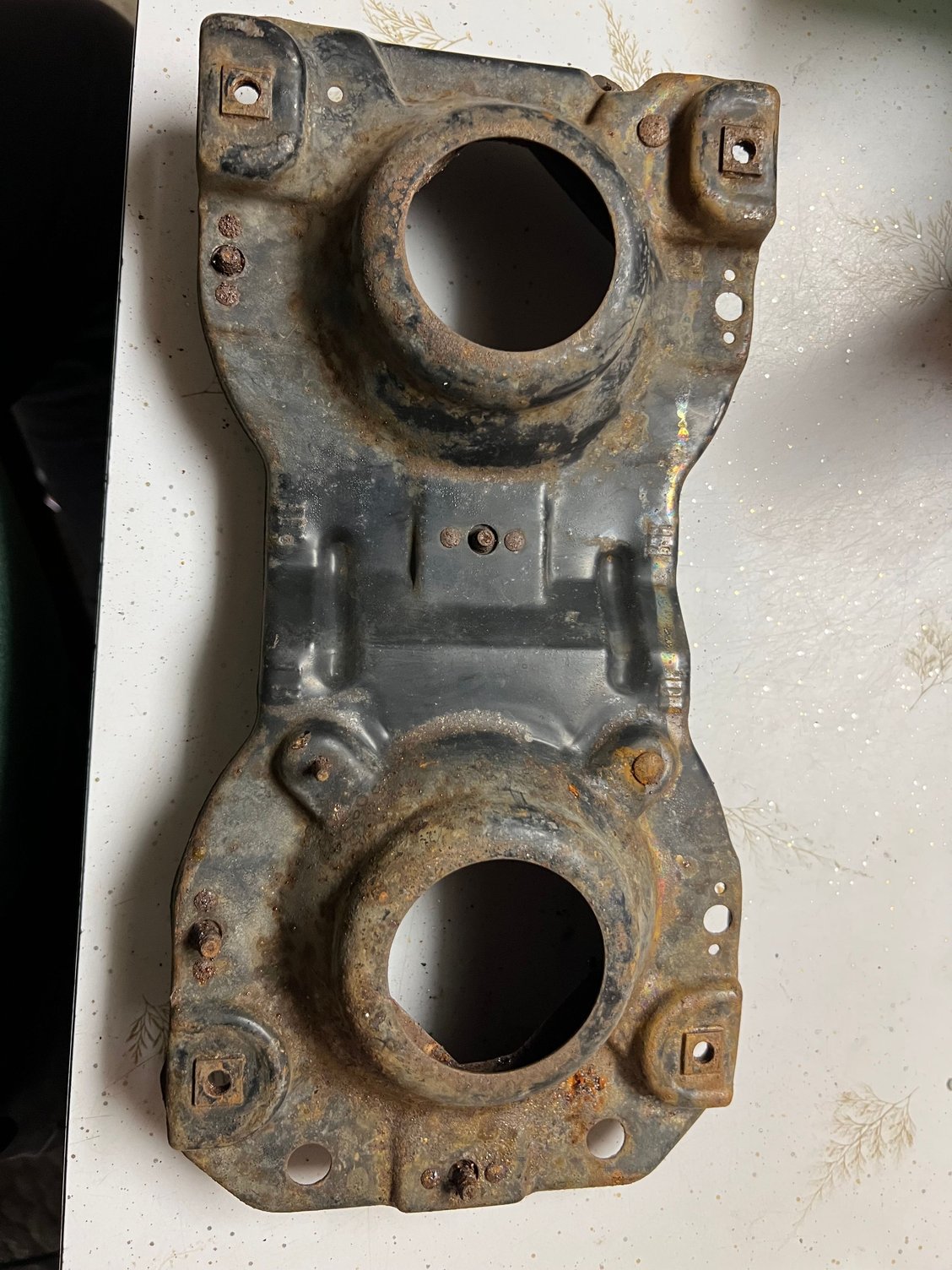

here is one for now. Will get the cleanest buckets & bracket for you
best,
Brett



Thank you Brett and thank you Don.

I know you both know the difference. I have a habit of over documenting for future readers.
Most don't know that the buckets are labeled and the order of install.



It’s all good Rick, no worries, better safe than sorry
thank you



As long as you're educating the uninformed, '70 don't have a left and right; you just invert them.



You are correct but....
If you want your adjusters in correct symmetry then their is a right and left.



Bob…..always the trouble maker
🥸



:d



well...once assembled, there's a left and a right (indexing pin at the backside) although the stampings are marked LH Top and RH Top :-)

Pedantic, I know.

Wife sent me to the store for milk. "If they have bananas, get two" she said. They had bananas so I got two milk...as instructed...

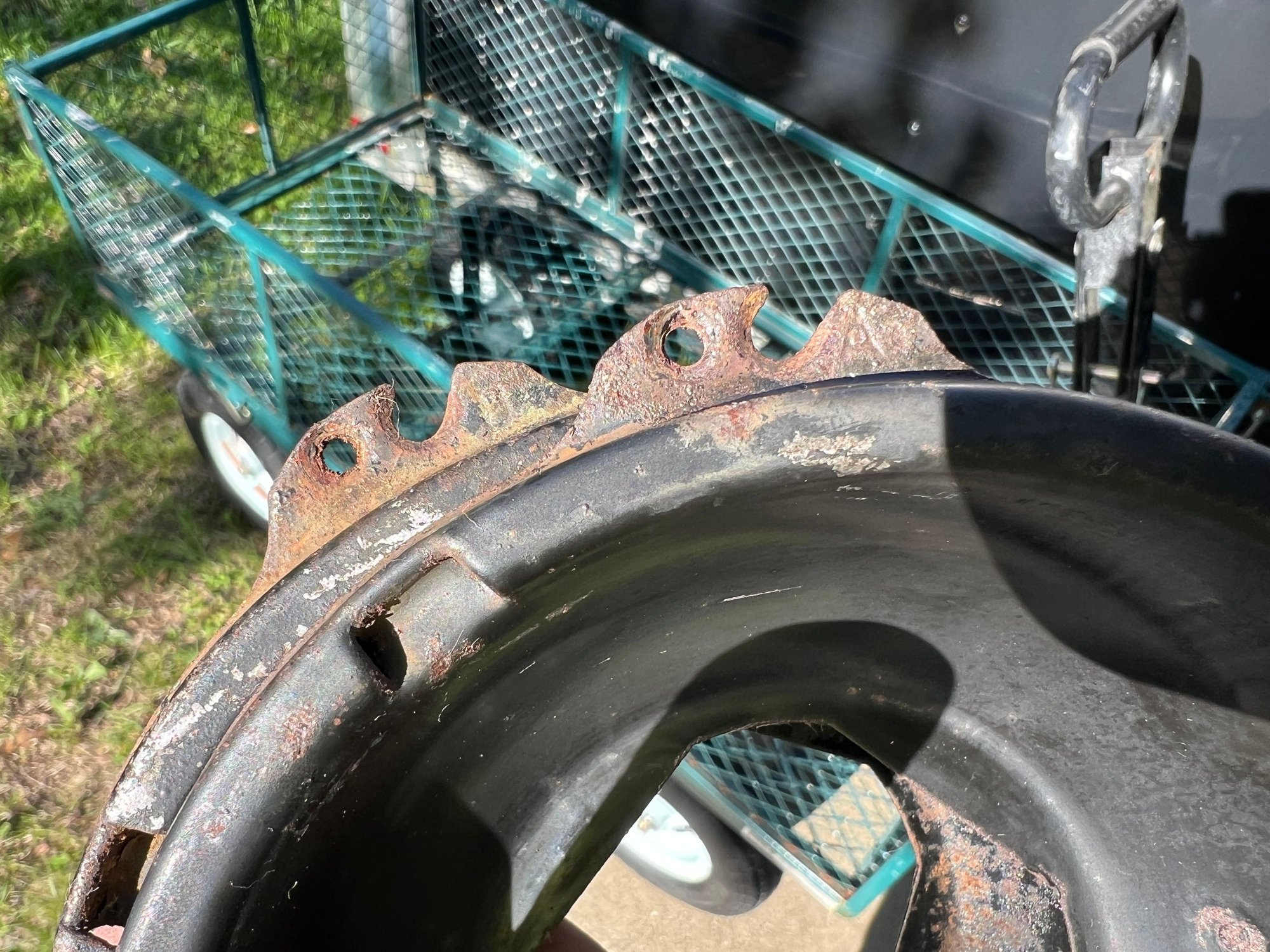

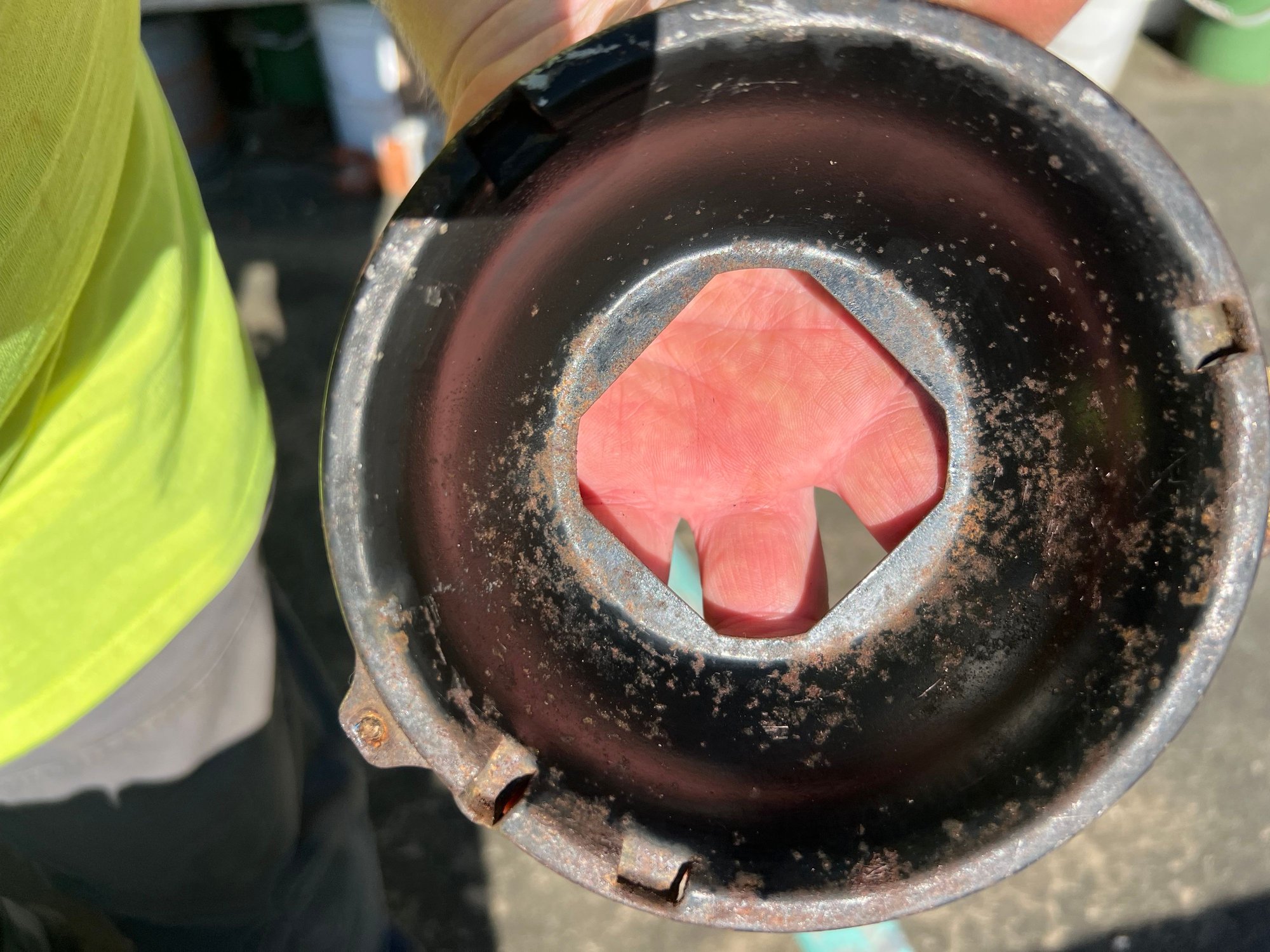

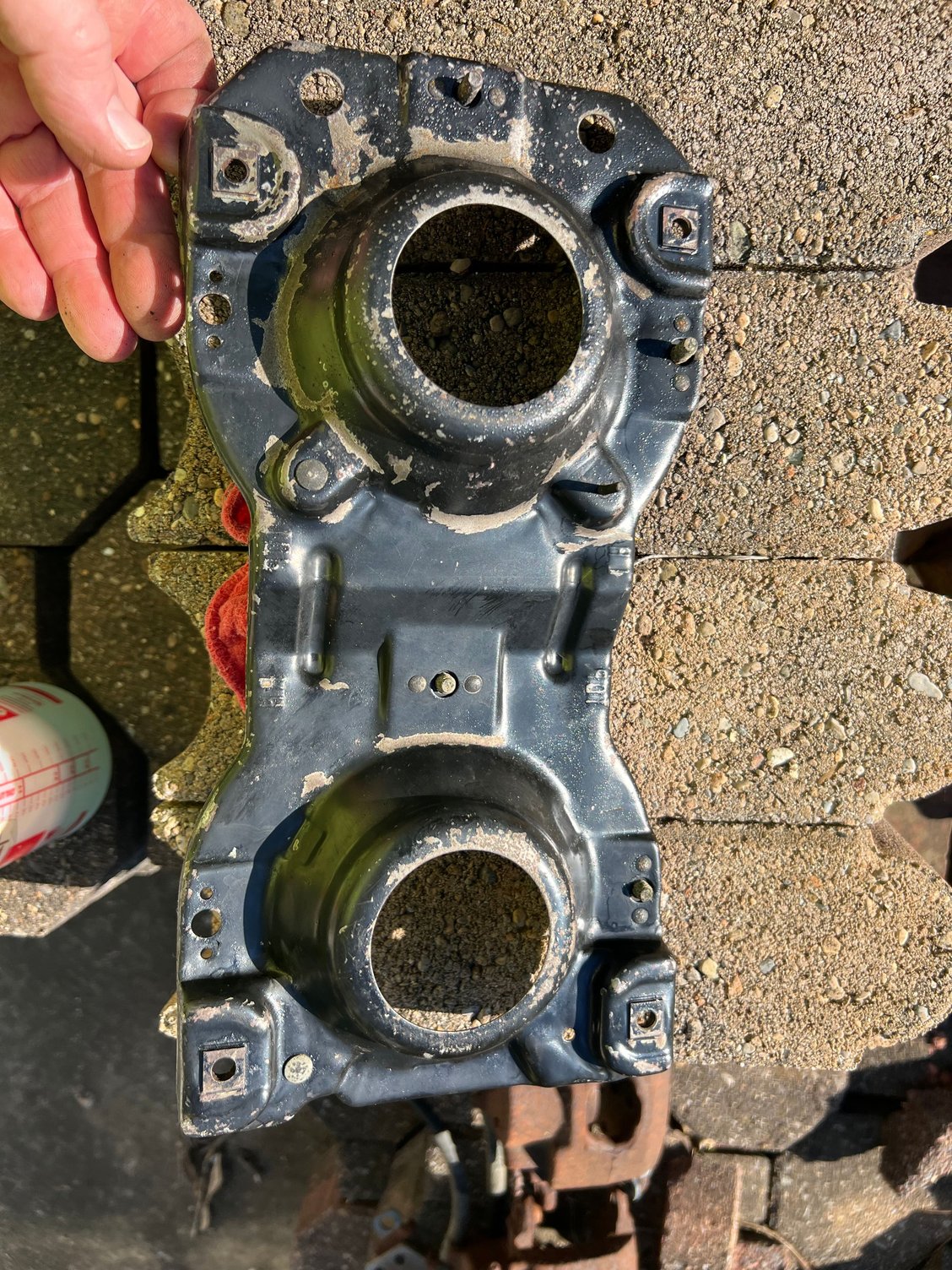

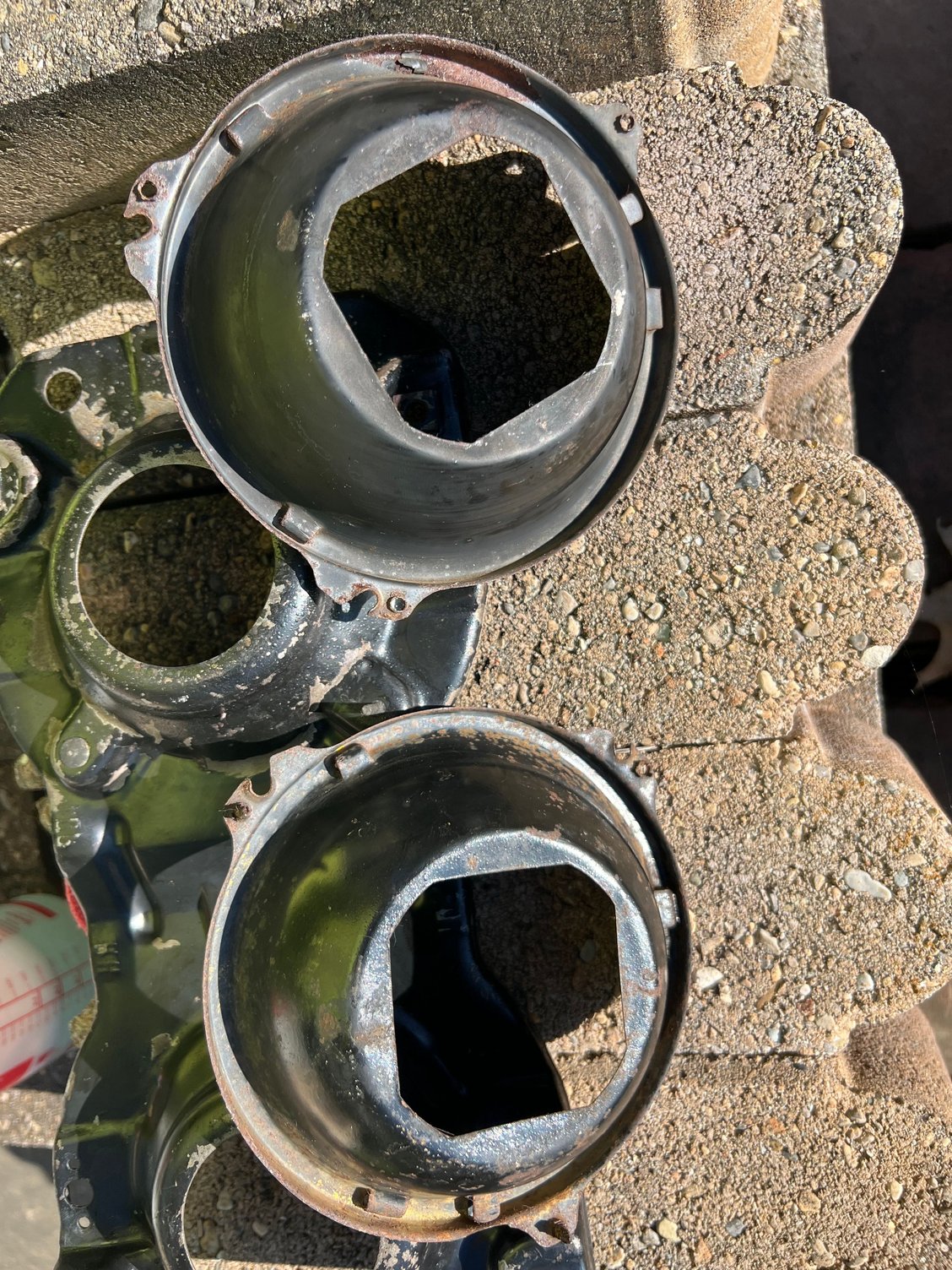

Rick, thanks for your patience. Gave them a nice bath
They







look pretty nice, but you are the judge. Please let me know if you need further specific pics

best,
Brett



Sending you a PM Brett.



Uh oh
in trouble now
