negative battery cable--442
#2
Check your assembly manual (or maybe someone can check for you).
If it's like 1970, then the attaching point on the block is the same (if I remember correcty) but the routing of the cable may differ. Interestingly, the correct bolt hole is behind the power steering pump, almost impossible to get to, and uses a hard-to-find bolt size, which explains why on most cars -- which have invariably had their cable removed or replaced at least once -- you find that someone has chosen to bolt it to the head instead.
If it's like 1970, then the attaching point on the block is the same (if I remember correcty) but the routing of the cable may differ. Interestingly, the correct bolt hole is behind the power steering pump, almost impossible to get to, and uses a hard-to-find bolt size, which explains why on most cars -- which have invariably had their cable removed or replaced at least once -- you find that someone has chosen to bolt it to the head instead.
#3
Hi Tom,
It appears that routing of the negative battery cable is slightly different on cars with A/C than without A/C. I've scanned "Figure 2" in manual section 12, page 132, of the '68 Cutlass/4-4-2 PIM, and that should show how it is routed. When I first looked at this picture and saw "A/C GENERATOR", I thought, that's not the compresssor - the compressor is on the other side. Then it hit me - it's not the compressor, it's the alternator for cars with A/C!
Hope this helps.
Randy C.
It appears that routing of the negative battery cable is slightly different on cars with A/C than without A/C. I've scanned "Figure 2" in manual section 12, page 132, of the '68 Cutlass/4-4-2 PIM, and that should show how it is routed. When I first looked at this picture and saw "A/C GENERATOR", I thought, that's not the compresssor - the compressor is on the other side. Then it hit me - it's not the compressor, it's the alternator for cars with A/C!
Hope this helps.
Randy C.
#9

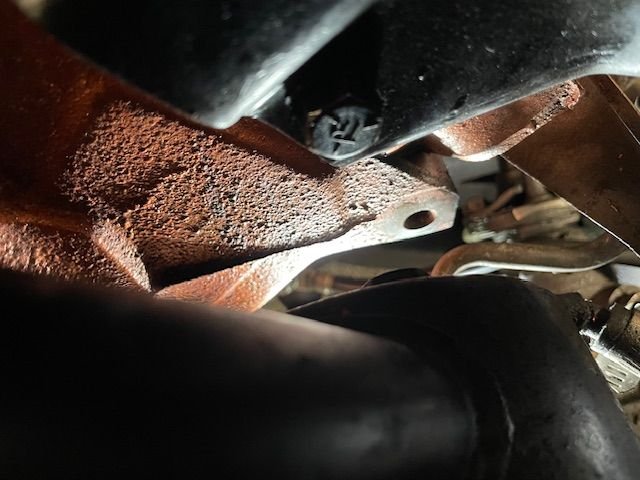

From what I can tell looks like non ac cars had it attached to the power steering bracket, but AC cars may have been on the alternator bracket. My 70 manual says refer to another page for ac location which is missing in my book. Hoping someone with an assembly manual has that page. The above page just shows basic routing but not finished routing. I have the above page. There is more than just this page.
#12
68 AIM, Page 12-132 and 12-132-A are somewhat confusing. Views X & Z on 12-132, upper right, is how my early production Z code is with PS & AC, no clip, opposite of what's shown in the lower left "view 2". at least no clip was present when I took ownership in 86.
But then on 12-132A, it states note A which directs you to figure 2 on 12-132 for 400s with PS and A/C.
The PO R&R'ed the engine/trans before I took ownership. And the OEM cables had been replaced with bolt clamp styles. So maybe it should have said clamp?
I also see 4 variations of the positive cable routing which never registered with me before. Trans and with or w/o AC affect the config.etc. Page 6-1 -132 further confuses me as it only shows 400 SM A engines only. Doesn't show the 400/400 automatic tube. The other diagram presumed to be for "A" engines, denotes "EXC 400 CU IN ENGINE" Neither of these views on 6-1-132 is what I have on my 400/400. My tube is more horizontal which is consistent with other automatic 68 442 autos I've seen over the years.
But then on 12-132A, it states note A which directs you to figure 2 on 12-132 for 400s with PS and A/C.
The PO R&R'ed the engine/trans before I took ownership. And the OEM cables had been replaced with bolt clamp styles. So maybe it should have said clamp?
I also see 4 variations of the positive cable routing which never registered with me before. Trans and with or w/o AC affect the config.etc. Page 6-1 -132 further confuses me as it only shows 400 SM A engines only. Doesn't show the 400/400 automatic tube. The other diagram presumed to be for "A" engines, denotes "EXC 400 CU IN ENGINE" Neither of these views on 6-1-132 is what I have on my 400/400. My tube is more horizontal which is consistent with other automatic 68 442 autos I've seen over the years.
