Fender Emblem Hole Placement

Thread Tools

Search this Thread

Old Oct 15, 2025 | 08:39 AM
Share
  #1
haroldbooker's Avatar
haroldbooker
Thread Starter
Registered User

Joined: Aug 2018
Posts: 35
Fender Emblem Hole Placement
Does anyone have a template of a 1970 Cutlass SX without the emblems on it so I can see the proper hole placement? Once I have the "Cutlass" emblem in place I can figure the proper placement for SX. TIA
Reply
Old Oct 15, 2025 | 09:42 AM
Share
  #2
acavagnaro's Avatar
acavagnaro
Registered User

Joined: Aug 2014
Posts: 839
From: Western North Carolina
The Fisher Body Manual shows the pierce points for all fender holes. You should be able to find a 1970 version from various sources.
Reply
Old Oct 15, 2025 | 01:43 PM
Share
  #3
joe_padavano's Avatar
joe_padavano
Old(s) Fart

Joined: Mar 2007
Posts: 50,802
From: Northern VA
Originally Posted by acavagnaro
The Fisher Body Manual shows the pierce points for all fender holes. You should be able to find a 1970 version from various sources.
I don't think the FBM provides dimensions. The Product Information Manual only refers to template numbers that are not included in that document either.
Reply
Old Oct 15, 2025 | 03:36 PM
Share
  #4
Vintage Chief's Avatar
Vintage Chief
Running On Empty

Joined: Jul 2018
Posts: 26,049
From: Earth
I took these measurements some time ago from my 1971 Cutlass Supreme convertible. They may be of some assistance to you.

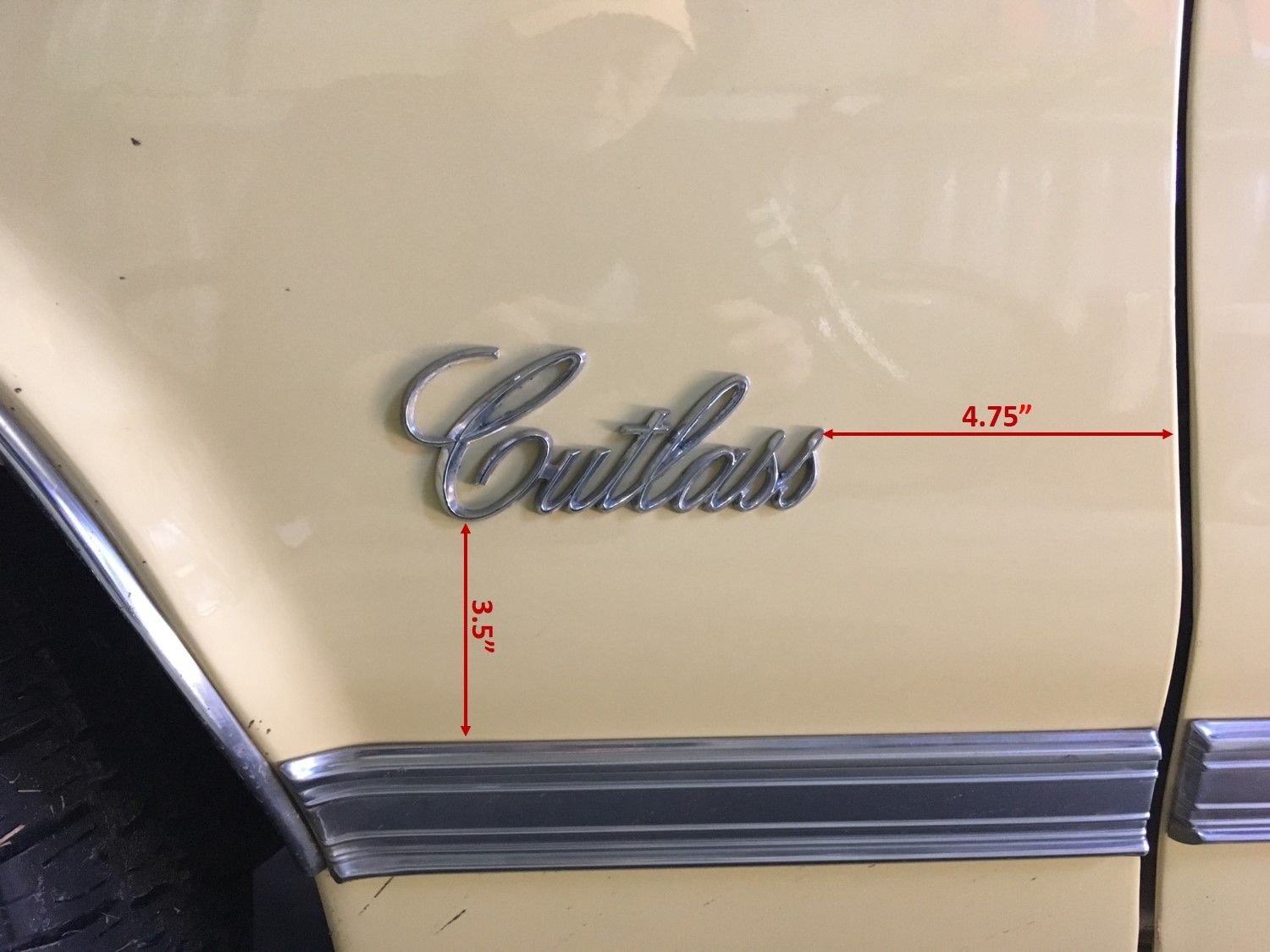

Driver (LH) Side
Driver (LH) Side

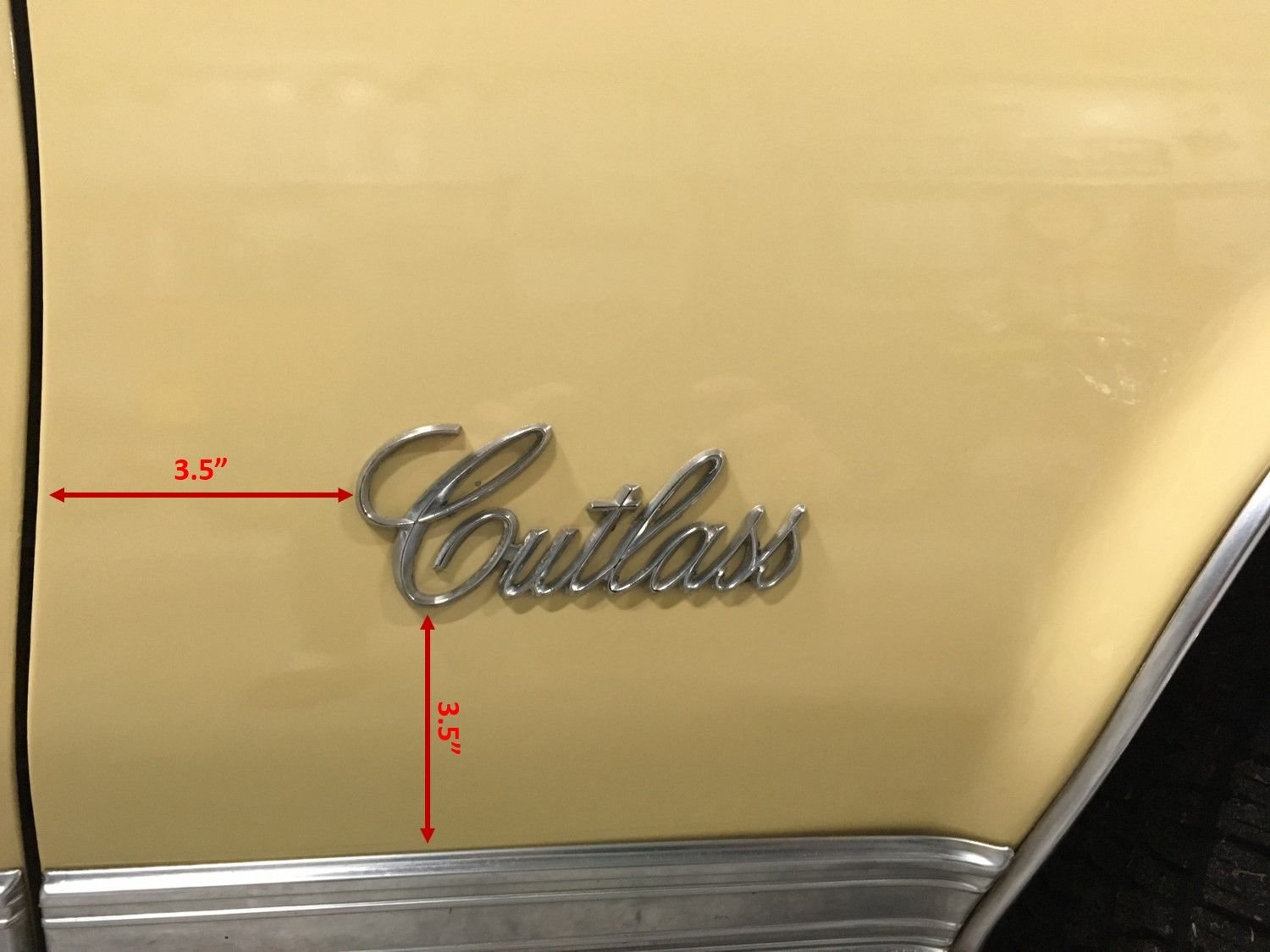

Passenger (RH) Side
Passenger (RH) Side
Reply
Old Oct 15, 2025 | 05:27 PM
Share
  #5
haroldbooker's Avatar
haroldbooker
Thread Starter
Registered User

Joined: Aug 2018
Posts: 35
Joe, thanks for sharing.
Reply
Old Oct 15, 2025 | 05:29 PM
Share
  #6
haroldbooker's Avatar
haroldbooker
Thread Starter
Registered User

Joined: Aug 2018
Posts: 35
Correction Norm thanks for sharing!
Harold
Reply
Old Oct 16, 2025 | 02:57 PM
Share
  #7
z11375ss's Avatar
z11375ss
Senior Moment Member

Joined: Jan 2007
Posts: 3,238
Here. Here's a template for ya. My pleasure.
