hello guys

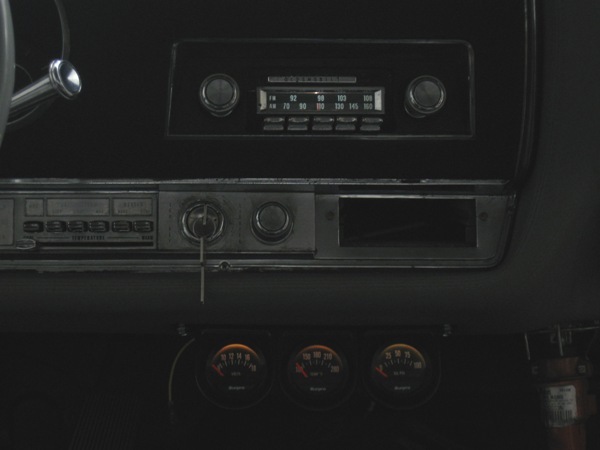

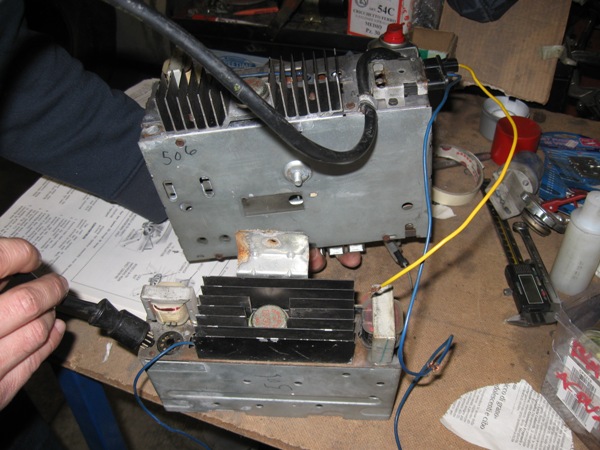

I bought an AM radio FM 67 Delmont , is very different from our European and I wanted to ask how to connect the wires.
which is the audio output?
thanks
I bought an AM radio FM 67 Delmont , is very different from our European and I wanted to ask how to connect the wires.
which is the audio output?
thanks
April 15th, 2010, 03:38 PM
#2
Registered User
Join Date: Jul 2008
Location: Chi-town
Posts: 4,511
looks like a 1970 AM/FM radio with the amp - I'll have to check but the blue and yellow wires are speaker wires I think. Maybe the 67 deltas had the same radio but wait until someone responds with a definite answer before you mess with the wires. I'll see if I can dig up my paperwork on how to hook it up CIAO
April 15th, 2010, 10:07 PM
#3
Registered User
Join Date: Feb 2010
Location: Windsor, Ontario
Posts: 901

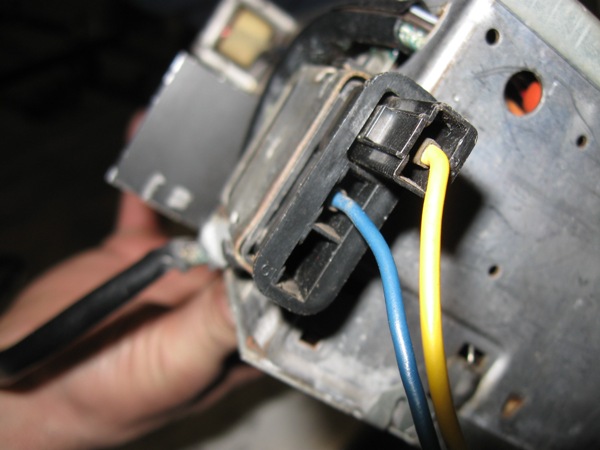

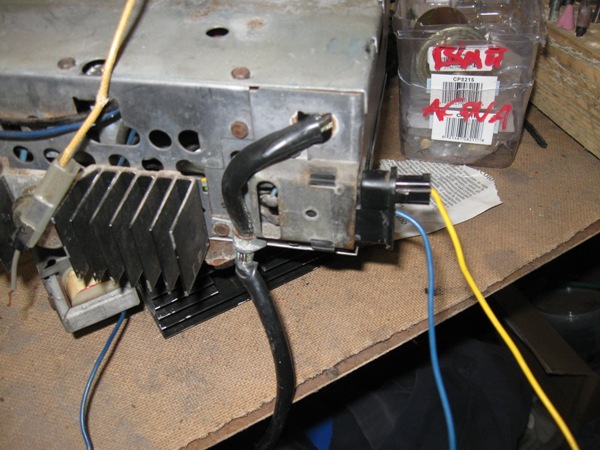

Yellow is hot! It's the power wire. Make sure it is connected to a fuse. Blue is the speaker wire. - Negative is ground. Do not run the radio without the speakers attached. The one blue wire from the radio goes to the front speaker.
The smaller unit is your multi-plexer. The blue wire from the multi-plexer goes to the rear speaker. These cars in 1967 had only two speakers. Stereo was achieved between the front and back speaker. There was no left & right stereo.
Make sure that... your radio, multi-plexer and speakers have a good ground.
Also, make sure that the base of your antenna is grounded to the fender or radio. Do not run the radio without the antenna hooked up.
This service manual helps a lot!
The smaller unit is your multi-plexer. The blue wire from the multi-plexer goes to the rear speaker. These cars in 1967 had only two speakers. Stereo was achieved between the front and back speaker. There was no left & right stereo.
Make sure that... your radio, multi-plexer and speakers have a good ground.
Also, make sure that the base of your antenna is grounded to the fender or radio. Do not run the radio without the antenna hooked up.
This service manual helps a lot!
Last edited by Jaybird; April 15th, 2010 at 11:56 PM.
April 16th, 2010, 03:55 AM
#5
Registered User
Thread Starter
Join Date: Mar 2009
Location: italy
Posts: 540
Yellow is hot! It's the power wire. Make sure it is connected to a fuse. Blue is the speaker wire. - Negative is ground. Do not run the radio without the speakers attached. The one blue wire from the radio goes to the front speaker.
The smaller unit is your multi-plexer. The blue wire from the multi-plexer goes to the rear speaker. These cars in 1967 had only two speakers. Stereo was achieved between the front and back speaker. There was no left & right stereo.
Make sure that... your radio, multi-plexer and speakers have a good ground.
Also, make sure that the base of your antenna is grounded to the fender or radio. Do not run the radio without the antenna hooked up.
This service manual helps a lot!
The smaller unit is your multi-plexer. The blue wire from the multi-plexer goes to the rear speaker. These cars in 1967 had only two speakers. Stereo was achieved between the front and back speaker. There was no left & right stereo.
Make sure that... your radio, multi-plexer and speakers have a good ground.
Also, make sure that the base of your antenna is grounded to the fender or radio. Do not run the radio without the antenna hooked up.
This service manual helps a lot!
the manual is for sale?
April 16th, 2010, 01:22 PM
#8
Registered User
Join Date: Jul 2008
Location: Chi-town
Posts: 4,511
phew, glad you waited for an answer, looking at the image its clear the yellow was power, forgot both speaker wires are blue - mine is set up the same way, only two speakers, one in back and one in front.
April 17th, 2010, 12:32 PM
#9
Registered User
Thread Starter
Join Date: Mar 2009
Location: italy
Posts: 540
i'm very happy,the radio is on and speackers have a good sound!!
April 17th, 2010, 02:39 PM
#11
Registered Abuser
Join Date: Jul 2009
Location: Ontariario
Posts: 443
Yellow is hot! It's the power wire. Make sure it is connected to a fuse. Blue is the speaker wire. - Negative is ground. Do not run the radio without the speakers attached. The one blue wire from the radio goes to the front speaker.
The smaller unit is your multi-plexer. The blue wire from the multi-plexer goes to the rear speaker. These cars in 1967 had only two speakers. Stereo was achieved between the front and back speaker. There was no left & right stereo.
Make sure that... your radio, multi-plexer and speakers have a good ground.
Also, make sure that the base of your antenna is grounded to the fender or radio. Do not run the radio without the antenna hooked up.
This service manual helps a lot!
The smaller unit is your multi-plexer. The blue wire from the multi-plexer goes to the rear speaker. These cars in 1967 had only two speakers. Stereo was achieved between the front and back speaker. There was no left & right stereo.
Make sure that... your radio, multi-plexer and speakers have a good ground.
Also, make sure that the base of your antenna is grounded to the fender or radio. Do not run the radio without the antenna hooked up.
This service manual helps a lot!
April 17th, 2010, 04:01 PM
#13
Registered User
Join Date: Feb 2010
Location: Windsor, Ontario
Posts: 901
OK: I was playing it safe. You could turn the radio on without the antenna.
From the 1967 Chassis Service Manual... 15-4 Trimmer Adjustment,
3. If the car is equipped with a rear seat speaker, insert a shunt wire as shown in Fig. 15-7 or Fig. 15-8. NOTE: Do not turn on radio unless shunt wire is installed.
From the 1967 Chassis Service Manual... 15-4 Trimmer Adjustment,
3. If the car is equipped with a rear seat speaker, insert a shunt wire as shown in Fig. 15-7 or Fig. 15-8. NOTE: Do not turn on radio unless shunt wire is installed.
Last edited by Jaybird; April 17th, 2010 at 05:22 PM.
April 17th, 2010, 04:04 PM
#14
Registered Abuser
Join Date: Jul 2009
Location: Ontariario
Posts: 443
OK: I was playing it safe. You could turn the radio on without the antenna.
From the 1967 Chassis Service Manual... 15-4 Trimmer Adjustment,
3. If the car is equipped with a rear seat speaker, insert a shunt wire as shown in Fig. 15-7 or Fig. 15-8. NOTE: Do not turn on radio unless shunt wire is installed.
From the 1967 Chassis Service Manual... 15-4 Trimmer Adjustment,
3. If the car is equipped with a rear seat speaker, insert a shunt wire as shown in Fig. 15-7 or Fig. 15-8. NOTE: Do not turn on radio unless shunt wire is installed.
It's still in, perhaps I should disconnect the power to prevent the possibility of damage.
April 17th, 2010, 05:25 PM
#15
Registered User
Join Date: Feb 2010
Location: Windsor, Ontario
Posts: 901
Hmmmm... Don't know about that... can't say for sure.
The instructions posted above are basically for trimming the antenna. Do you have a stereo multi-plexer? If it's plugged into the radio, you should have stereo sound. The speakers are 8 - 10 Ohms
The instructions posted above are basically for trimming the antenna. Do you have a stereo multi-plexer? If it's plugged into the radio, you should have stereo sound. The speakers are 8 - 10 Ohms
April 18th, 2010, 07:27 AM
#16
Registered User
Thread Starter
Join Date: Mar 2009
Location: italy
Posts: 540
Jay
this manual where can I find?
April 18th, 2010, 08:14 AM
#17
Registered User
Join Date: Feb 2010
Location: Windsor, Ontario
Posts: 901
I got mine on eBay. There is one for sale right now. $49.99
http://cgi.ebay.ca/1967-DELCO-RADIO-...item53df89303d
I think I paid $20.00 for mine from some place in Saskatchewan, Canada.
I got a 67 Owners manual, 67 shop manual, and 67 sales brochure from these people... Good service! Kind of pricey.
They are located in Godrich, Ontario. Ask them to keep an eye out for a 1967 Radio Maunal. Say, 'Hi' to Nicola for me!
http://www.kenmcgeeautobooks.com/
http://cgi.ebay.ca/1967-DELCO-RADIO-...item53df89303d
I think I paid $20.00 for mine from some place in Saskatchewan, Canada.
I got a 67 Owners manual, 67 shop manual, and 67 sales brochure from these people... Good service! Kind of pricey.
They are located in Godrich, Ontario. Ask them to keep an eye out for a 1967 Radio Maunal. Say, 'Hi' to Nicola for me!
http://www.kenmcgeeautobooks.com/
