70 Console wiring?
Thread Starter
Unregistered Madman
Joined: Mar 2012
Posts: 63
From: Backwater, Alaska
70 Console wiring?
Anyone have a wiring diagram that shows the console wiring? I've seen this diagram but it just shows a hot feed off to the console somewhere.

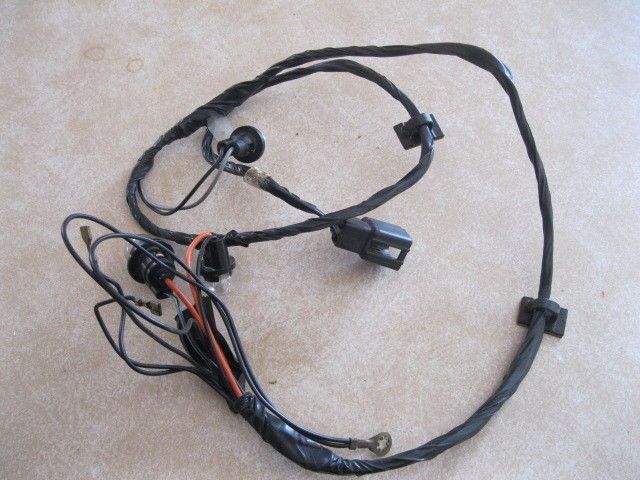

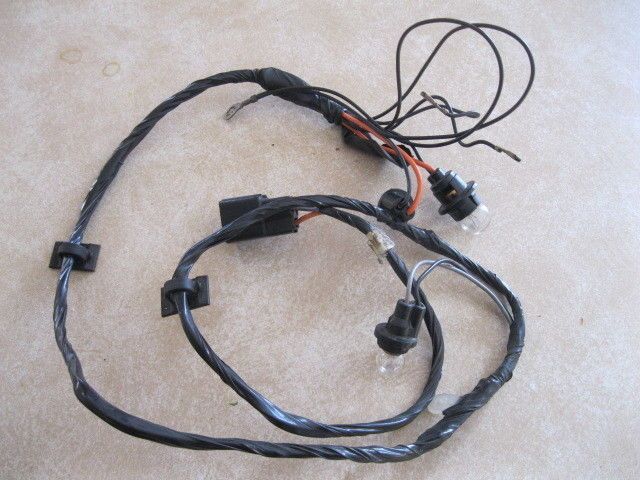

I'm trying to adapt a 4-wire '70 console harness to a '72 3-wire pigtail. Both were bought before I knew the difference, and when I first got them, a superficial check suggested the only difference was the '70 included a ground of some form.
I have the parts to make the physical change- the plugs and contacts- but I want to triple-check a proper diagram before I go snapping everything into place.
Doc.
I'm trying to adapt a 4-wire '70 console harness to a '72 3-wire pigtail. Both were bought before I knew the difference, and when I first got them, a superficial check suggested the only difference was the '70 included a ground of some form.
I have the parts to make the physical change- the plugs and contacts- but I want to triple-check a proper diagram before I go snapping everything into place.
Doc.
Last edited by DocN; Today at 12:49 AM.
